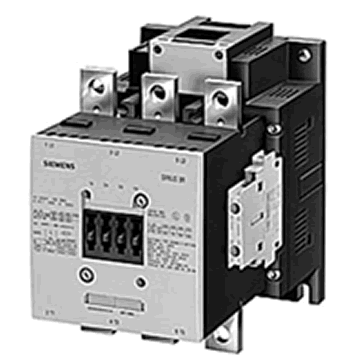

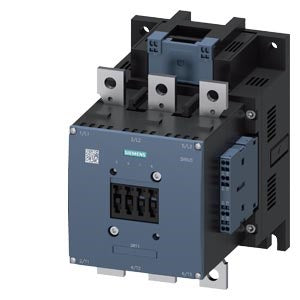

Siemens 3RT1064-6AB36 Contactor S10 225A 23-26VUC

Product Description

The SIEMENS 3RT1064-6AB36 is a three pole IEC contactor rated for 225 AMPS AC-3 and 275 AMPS AC-1 with a 23 to 26 volt AC/DC coil voltage. It is suitable for switching motors and has screw connection terminals for mounting to the back of the panel.

• Can be equipped with a maximum of 8 auxiliary contacts
• Magnetic coil can be pulled out upwards without tools for easy coil changing
• Auxiliary contacts 2 NO/2 NC

Product Highlights

The SIEMENS 3RT1064-6AB36 contactor is ideal for motor switching applications requiring a robust and reliable solution.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1064-6AB36
• Country of Origin: Germany

Technical Specifications

• Coil Type: AC Coil
• Amp Rating: 225 Amps
• Frame Size: S10
• Aux Contacts: 2 NO/2 NC
• Coil Voltage: 23-26 V
• Type of Part: IEC Contactor
• Terminal Type: Screw Terminals
• HP Rating at 200V: 60
• HP Rating at 230V: 75
• HP Rating at 460V: 150
• AMP Rating: 225 AMP AC-3 275 AMP AC-1
• Horsepower: 150 H.P. @ 460 volt 75 H.P. @ 230 volt
• Auxiliaries: 2 side mounted, each with 1 NO/1 NC
• Terminals: Bolt on lugs
• Brand: SIEMENS
• Contact Current Rating: 225 A
• Manufacturer Part Number: 3RT1064-6AB36
• Mounting Type: DIN Rail Mount
• Number of Poles: 3
• Series: 3RT Series
• Applications: Contactors for switching motors
• Contact Rating: A600 / Q600
• Number of Phases: 3 Phase
• Operating Temperature: 60 To 25 degrees C
• Power Rating: 110.324 kW
• Size: S10
• Tc Connection: screw-type terminals
• Type: 3RT10 power contactor
• Sub Brand: SIRIUS
