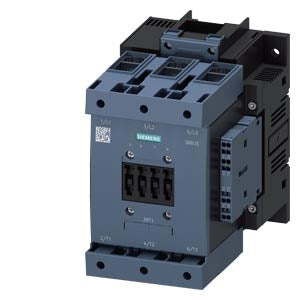

Siemens 3RT1054-6AV36 Contactor S6 115A 380-420VUC

Product Description

The SIEMENS 3RT1054-6AV36 is a contactor with a 115A amp rating and a coil voltage of 380-420VAC/DC. It is designed for switching motor power in industrial applications. The contactor is size S6 and features screw terminals for easy connection. It is suitable for use in safety-related applications.

• Significant part of safety related applications
• Generally the actuators that perform the switching operation
• Size S6 Exchangeable Operating Mechanisms with Integrated Coil Circuit

Product Highlights

The SIEMENS 3RT1054-6AV36 contactor is ideal for motor power switching with a 115A rating and 380-420VAC/DC coil voltage.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1054-6AV36
• Country of Origin: Germany

Technical Specifications

• Coil Type: AC Coil
• Amp Rating: 115 Amps
• Frame Size: S6
• Aux Contacts: 2 NO/2 NC
• Coil Voltage: 380-420vac/dc
• Type of Part: IEC Contactor
• Terminal Type: Screw Terminals
• HP Rating at 200V: 40
• HP Rating at 230V: 50
• HP Rating at 460V: 100
• Brand: Siemens
• MPN: 3RT1054-6AV36
• Mounting: Screw Fixing, Vertical
• Enclosure: IP00/20
• Size: Frame Size S6
• Construction Standard: IEC
• Approval: UL, CSA, CE, CCC, EAC
• Connection Type: Screw Terminal, Busbar
• Drive Type: Conventional
• Applicable Standard: IEC/EN 60947-1/60947-4-1/60947-5-1
• Model: 3RT1054-6AV36
• Type: Non-Reversing Contactor
• Switching Voltage: 1000VAC - Max
• Manufacturer: Siemens
• Features: Auxiliary Contacts
• Series: SIRIUS
• Packaging: Box
• Operating Temperature: -25
• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
