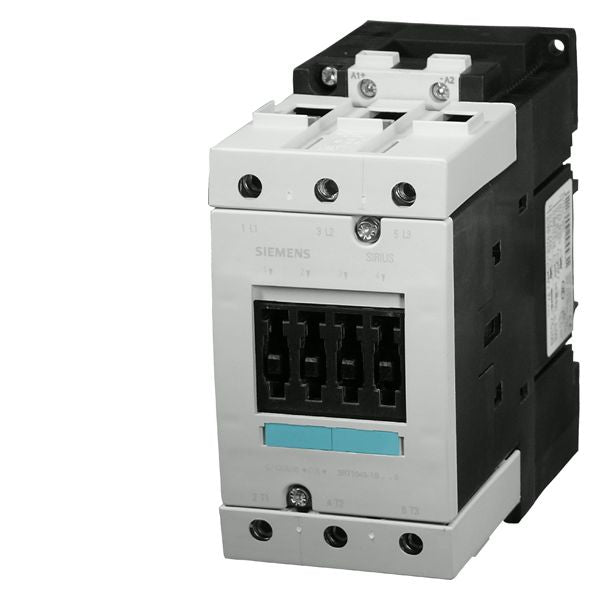

Siemens 3RT1046-1BB40 Sirius Standard IEC Contactor 95 A

Product Description

The SIEMENS 3RT1046-1BB40 is a Sirius standard IEC contactor with a 24 VDC coil and a maximum load of 95 A. This 3-pole contactor features a 3NO contact configuration and screw-type connections. It is suitable for DIN rail or panel mounting and is commonly used in various industrial applications for motor control and power switching.

• Standard IEC Contactor
• 24 VDC Coil
• 95 A Max Load

Product Highlights

Standard IEC contactor, 24 VDC coil, 95 A max load, 3NO, 3 poles, screw connections, DIN rail/panel mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1046-1BB40
• Country of Origin: DE

Technical Specifications

• Brand: SIRIUS (Siemens)
• Catalog Number: 3RT1046-1BB40
• Coil Power Rating: 15 W Closing/Holding
• Coil Voltage: 24 VDC
• Connection Type: Screw
• Contact Configuration: 3NO
• Contact Type: Non-Reversing
• Country of Origin: DE
• Enclosure Type: IP00
• EU RoHS Indicator: C
• Manufacturer: Siemens
• Maximum Load Current: 95 A
• Mounting Type: DIN Rail/Panel
• Number Of Poles: 3
• Operating Temperature: -25 to 60
• Size: SZ S3
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E31519 (Vol 8 Sec 2)
• Terminal Type: Screw
• Type: Standard
• UNSPSC: 39121529
• Wattage: 45 kW
• ARRA Compliant: C
• Buy American Compliant: C
