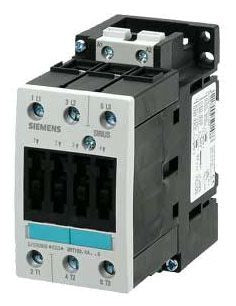

Siemens 3RT1035-1AP60 Contactor S2 40A

Product Description

The SIEMENS 3RT1035-1AP60 is a Size S2 IEC-style motor contactor rated for 40 amps, designed to switch and control motor loads in industrial and commercial electrical systems. Built to IEC standards, it handles the repeated make-and-break demands of motor starting and stopping in control panel applications. Weighing 1.94 pounds and measuring 4.646 inches long by 2.441 inches wide by 4.882 inches tall, it fits within standard DIN-rail or panel-mounted control enclosures. Licensed electricians and industrial control technicians are the primary installers of this device.

The 3RT1035-1AP60 is suited for motor branch circuit control in commercial and light industrial environments. Typical applications include pump control panels, HVAC fan motor circuits, conveyor systems, and compressor staging panels where reliable IEC contactor performance is required. The S2 frame size covers the 40A load range that bridges smaller starter applications and mid-range motor branch circuits, making it a common fit in control panels serving 3-phase motor loads in the 7.5 to 22 kW range.

Key Features

• 40A continuous current rating for motor load switching applications
• Size S2 IEC frame for compatibility with standard S2-footprint control assemblies
• Compact footprint at 4.646 x 2.441 x 4.882 inches for panel space efficiency
• Packaged as a single unit, 1 per pack
• 1.94-pound unit weight supports straightforward DIN-rail or screw-mount installation

Compatibility

Designed as an IEC-style Size S2 motor contactor for use in 40A motor control applications where a SIEMENS 3RT10 series device is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the panel before removing or installing any contactor. Verify coil voltage matches the control circuit voltage before powering up. Secure all load and control terminal connections to the manufacturer-specified torque range listed on the device nameplate.

Technical Specifications

• Current Rating: 40 amps
• Frame Size: S2
• Length: 4.646 inches
• Width: 2.441 inches
• Height: 4.882 inches
• Weight: 1.94 pounds
• Pack Quantity: 1
• UPC: 75455441117

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1035-1AP60
