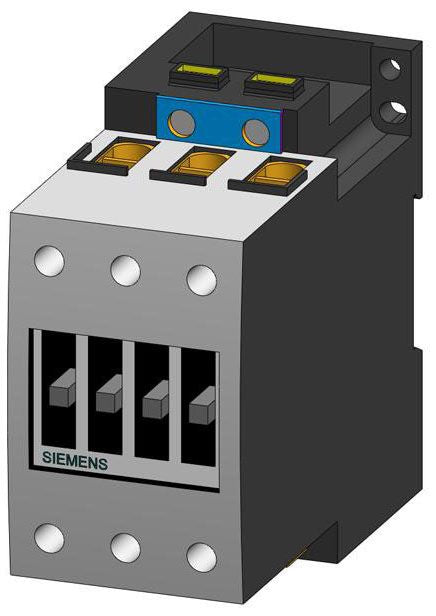

Siemens 3RT1034-1AM20 Contactor S2 32A

Product Description

The SIEMENS 3RT1034-1AM20 is a Size S2 definite-purpose AC contactor rated for 32 amps. Designed for motor control and load-switching applications, it provides reliable make-and-break switching in industrial and commercial electrical panels and motor control centers. The S2 frame size indicates a mid-range contactor suitable for heavier motor loads than smaller S0 or S00 units. Licensed electricians and industrial maintenance technicians are the primary installers of this device. Its compact footprint and standard IEC mounting make it a straightforward fit in new installations and replacement scenarios alike.

This contactor is suited for three-phase motor starter applications in commercial HVAC equipment, pump controls, compressor circuits, and general industrial machinery. It is used where dependable switching of motor loads up to 32 amps is required. The S2 frame class is a common IEC standard size found in motor control centers, combination starters, and standalone contactor assemblies across a wide range of light industrial and commercial facilities.

Key Features

• 32-amp rated switching capacity for motor and resistive load applications
• IEC Size S2 frame for compatibility with standard S2 mounting footprints
• Compact body measuring 4.646 inches long by 2.441 inches wide by 4.882 inches tall
• Lightweight construction at 1.795 pounds for easy panel handling and installation

Compatibility

Designed as an IEC-style replacement contactor for Size S2 motor starter and control panel applications. Confirm coil voltage and pole configuration match existing installation requirements before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel or motor control center before removing the existing contactor or wiring the new unit. Verify that the coil voltage, current rating, and auxiliary contact configuration of the 3RT1034-1AM20 match the requirements of the load circuit before energizing. Do not exceed the 32-amp rated load current for the device.

Technical Specifications

• Current Rating: 32 amps
• Frame Size: S2
• Length: 4.646 inches
• Width: 2.441 inches
• Height: 4.882 inches
• Weight: 1.795 pounds
• UPC: 75455444604
• Pack Quantity: 1

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1034-1AM20
