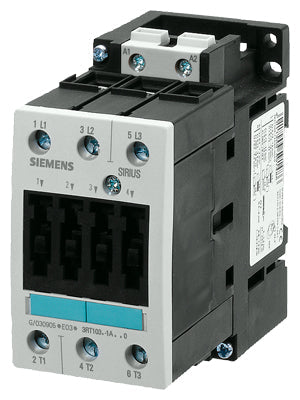

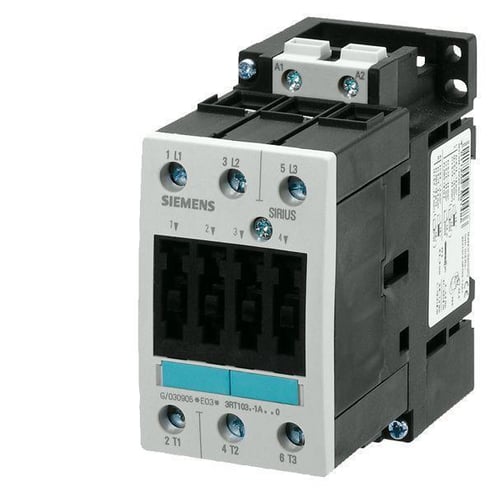

Siemens 3RT1033-1AC20 Contactor S2 28A

Product Description

The SIEMENS 3RT1033-1AC20 is a switching motor power contactor with 3 poles. It has a power rating of 15 Kilowatt at 230 Volt, 23 Kilowatt at 400 Volt, and 40 Kilowatt at 690 Volt (AC-1). The contactor is size S2 and conforms to IEC 60946 standards. It features a 24 Volt AC coil at 50/60 Hertz.

• 3-Pole with AC Coil
• Mounting via 35 Millimeter Standard DIN Rail or Screw/Snap-On
• Rated 10 HP at 230V and 20 HP at 460V

Product Highlights

The SIEMENS 3RT1033-1AC20 contactor is suitable for motor control applications. It has screw terminals and an IP00 enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1033-1AC20
• Country of Origin: DEU

Technical Specifications

• Number of Poles: 3
• Power Rating/Voltage: 15 Kilowatt at 230 Volt, 23 Kilowatt at 400 Volt, 40 Kilowatt at 690 Volt (AC-1), 15 Kilowatt at 400 Volt (AC-2), 5.5 Kilowatt at 230 Volt, 11 Kilowatt at 400/500/690 Volt (AC-3)
• Current Rating: 40 Amp at 400/690 Volt and 35 Amp at 600 Volt (AC-1), 25 Amp at 400 Volt and 13 Amp at 690 Volt (AC-3), 15.5 Amp at 400 Volt (AC-4)
• Coil Voltage: 24 V AC
• Mounting Type: DIN Rail/Panel
• Enclosure Type: IP00
• Size: SZ S2
• Construction: Standard IEC
• Approval: UL, CSA, CE, EAC, CCC
• Terminal Type: Screw
• Main Contact Rating: 3NO
• Temperature Rating: -25 to 60 deg C
• Applicable Standard: EN 50022
• AC Operating Coil Voltage: 24V 50Hz / 24V 60Hz
• Horsepower at 230V: 10 HP
• Horsepower at 460V: 20 HP
• Conforms to: IEC 60946
• Type: Standard
• Maximum Load Current: 28 A
• Wattage: 11 kW
• Frequency Rating: 50/60 Hz
• Coil Power Rating: 127 VA Pickup, 11.3 VA Holding
• Connection Type: Screw
• Contact Configuration: 3NO
• Power Factor: 0.73 Closing, 0.41 Holding
• Operating Cycles: 10000000 Cycles Contactor/Typical
• Contact Type: Non-Reversing
• Operating Temperature: -25 to 60 deg C
