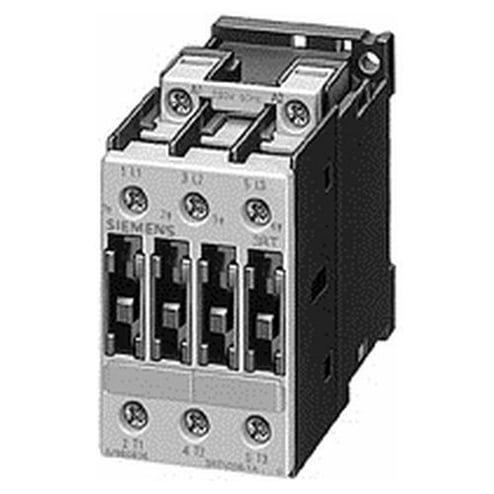

Siemens 3RT1024-1AM20 Contactor 3 Pole

Product Description

The Siemens 3RT1024-1AM20 is a 3 pole contactor. This SIRIUS IEC standard contactor has a coil voltage of 208 VAC and a frequency of 60 Hz. It is designed with a 3NO contact configuration and features screw terminals for easy connection.

• 3 Pole Contactor
• Standard IEC Contactor
• DIN Rail/Panel Mounting

Product Highlights

SIRIUS IEC Contactor with 208 VAC coil voltage, 3NO contact configuration, and screw terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1024-1AM20
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• MPN: 3RT1024-1AM20
• Model: 3RT10241AM20
• UPC: 4011209382589
• Country of Origin: Germany
• UNSPSC: 39121529
• Type: Standard
• Operating Temperature: -25 to 60 deg C
• Terminal Type: Screw
• Number of Poles: 3
• Wattage: 5.5 kW
• Frequency Rating: 60 Hz
• Coil Power Rating: 64 VA Pickup, 8.4 VA Holding
• Size: SZ S0
• Enclosure Type: IP20
• Coil Voltage: 208 V AC
• Mounting Type: DIN Rail/Panel
• Contact Configuration: 3NO
• Power Factor: 0.72 Closing, 0.24 Holding
• Operating Cycles: 10000000 Cycles Contactor/Typical
• Contact Type: Non-Reversing
• BABA Compliant: No
