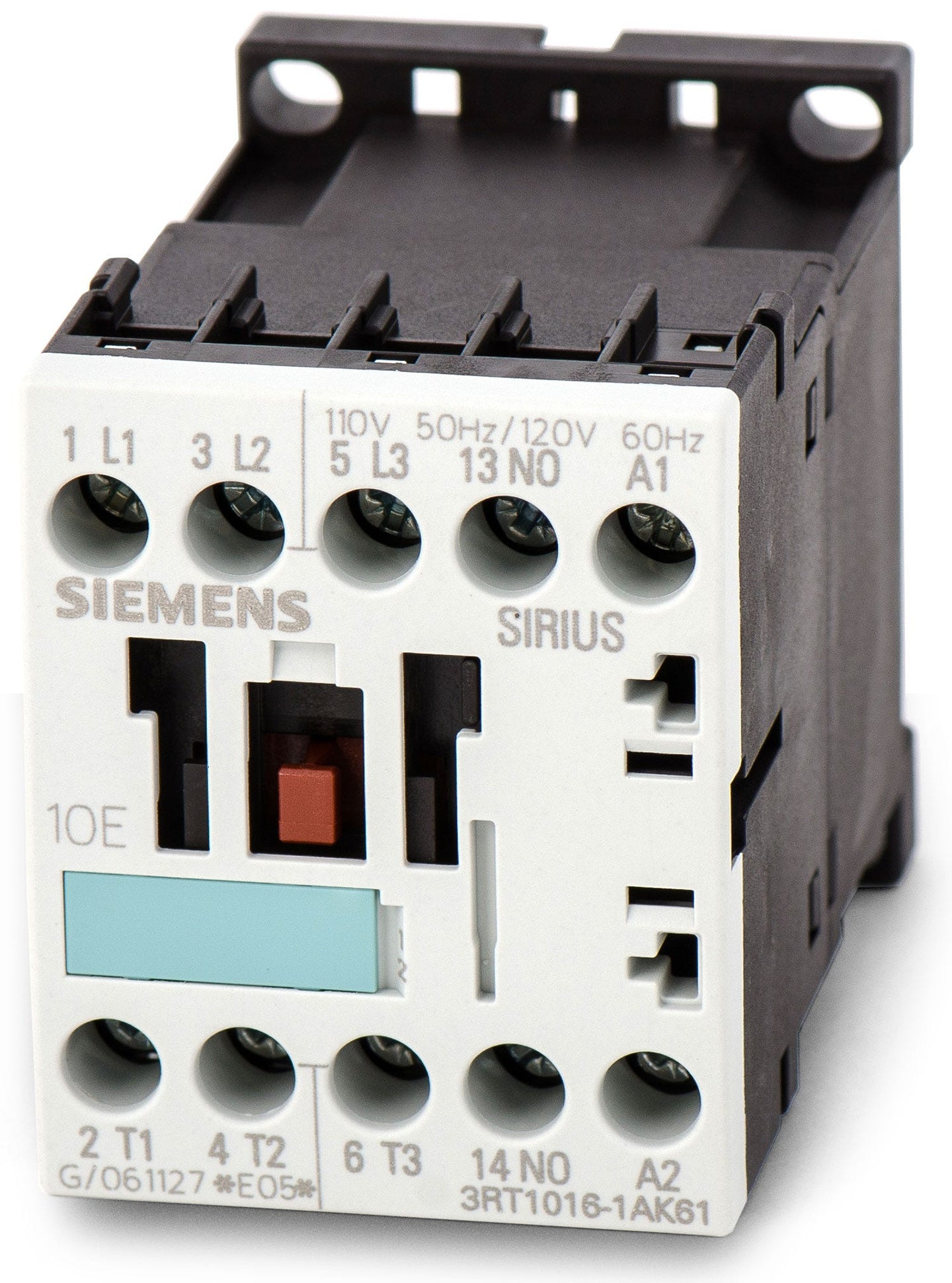

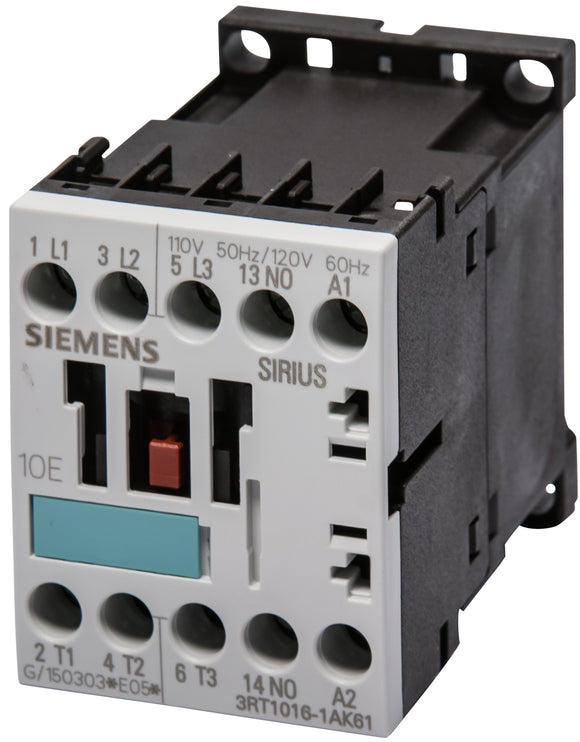

Siemens 3RT1016-1AK61 Contactor 110/120 VAC 9 Amp 7.5 Hp 3-Phase 3-Pole 1NO Screw Terminal

Product Description

The Siemens 3RT1016-1AK61 is a 3-phase IEC rated contactor used for controlling electric motors. Rated at 3 HP at 230V and 5 HP at 460V, it features a 1NO auxiliary contact and conforms to IEC 60946. This Sirius power contactor is designed for industrial and commercial electrical applications.

• 3-pole contactor, AC
• IEC rated
• 1NO auxiliary contact

Product Highlights

The Siemens 3RT1016-1AK61 is optimized for controlling and switching AC motors and other electrical loads.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1016-1AK61
• Country of Origin: Germany

Technical Specifications

• Voltage: 600VAC
• Amperage: 9 Amp at 400 VAC-3
• Power Rating: 4 kW at 400 VAC-3
• Number of Phases: 3 Phase
• Contact Configuration: 1 NO Auxiliary, 3 NO Main
• AC Operating Coil Voltage: 110V 50Hz / 120V 60Hz
• Frame Size: S00
• Amp ratings AC3: 9
• Amp ratings AC1: 22
• Three phase HP ratings 230V: 3
• Three phase HP ratings 460V: 5
• Auxiliary contacts NO: 1
• Auxiliary contacts NC: 0
• Brand: Siemens
• Model: Siemens 3RT1016-1AK61
• MPN: 3RT1016-1AK61
• Family: Sirius
• Type: 3RT, B3RT
• Phase: 3PH
• Poles: 3
• Current: 22 A
• Protection: IP20
• Mounting: Screw and Snap on
• Height: 57.5 mm
• Width: 45 mm
• Depth: 72 mm
• Ambient temperature: -25 ... +60 °C
• Series: 3RT
• Mounting Type: Din Rail
• Terminal Connection: Screw
• Standards: RoHS, REACh
• Action: Non-Reversing
• Coil Volts: 110/120VAC at 50/60Hz
• Upc: 754554410418
• Gtin: 754554410418
• Description: Power contactor
• Category: S00
• Range: SIRIUS
• Manufacturer: Siemens
• Model #: 3RT10161AK61
