Siemens 3RT1015-2BB42 Iec Motor Contactor S00 7A

Product Description

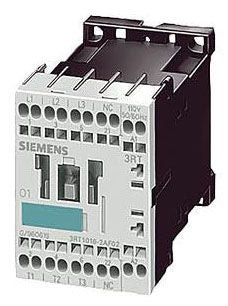

The SIEMENS 3RT1015-2BB42 is a 3-pole IEC motor contactor in the compact S00 frame size, rated for 7 amps AC-3 duty. It features a 24V DC control coil, making it well suited for PLC-driven and low-voltage control panel applications. The contactor switches three-phase and single-phase AC loads in motor starting and stopping circuits. Licensed electricians and industrial control panel builders install this device in motor control centers, machine panels, and automation enclosures where DIN rail mounting and compact footprint are required. The S00 frame keeps panel space to a minimum without sacrificing reliable load switching performance.

The 3RT1015-2BB42 is applied in light-duty motor control applications including conveyor drives, pump starters, fan circuits, and small HVAC equipment control panels. Its 24V DC coil interface integrates directly with programmable logic controllers and 24V DC control power supplies common in industrial and commercial building automation systems. The compact S00 frame is a standard IEC size used across a wide range of OEM machine builds and retrofit control panel projects.

Key Features

• S00 frame size for compact DIN rail mounting in space-constrained panels
• 7A AC-3 rated load current for light-duty motor switching applications
• 24V DC control coil for direct interface with PLC output modules and DC control circuits
• 3-pole configuration for standard three-phase motor load switching
• IEC-rated design consistent with international and domestic industrial control standards

Compatibility

Designed as an OEM-style IEC motor contactor replacement for S00 frame applications in industrial motor control and automation panel assemblies requiring a 7A AC-3 rating with a 24V DC coil.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out all control and load-side power before removing or installing the contactor. The device is designed for DIN rail mounting inside a listed enclosure rated for the environment. Verify coil voltage and load current ratings match the application before energizing the circuit.

Technical Specifications

• Frame Size: S00
• Load Current Rating: 7A (AC-3)
• Coil Voltage: 24V DC
• Number of Poles: 3
• Dimensions (L x W x H): 2.520 inches x 1.970 inches x 3.040 inches
• Weight: 0.550 pounds
• UPC: 75455441031

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1015-2BB42
