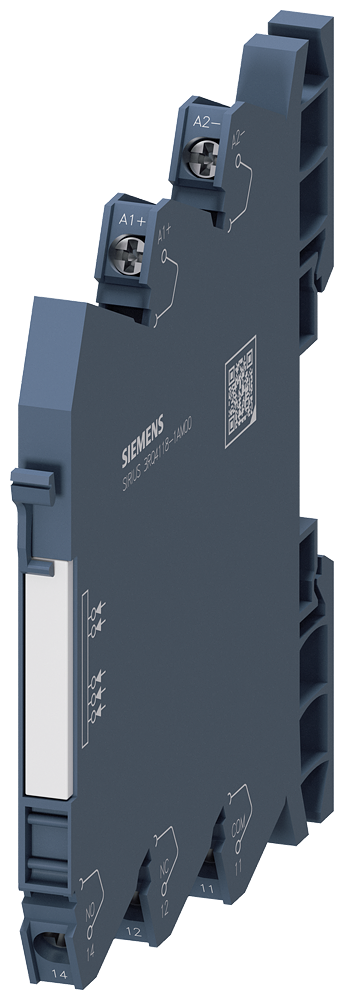

Siemens 3RQ41181AM00 Output Coupler with Plug-In Relay 24 V DC 6.2 mm

Product Description

The SIEMENS 3RQ41181AM00 is an output coupler with a plug-in relay designed for 24 V DC applications. It provides electrical separation, amplification, and signal conditioning between the controller and I/O. This narrow design is suitable for control and signaling applications with a thermal current of 6 A.

• Coupling relay for electrical separation
• Features amplification and signal conditioning
• Narrow 6.2 mm design

Product Highlights

The SIEMENS 3RQ41181AM00 output coupler offers a compact solution for control and signaling applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RQ41181AM00
• Country of Origin: Germany

Technical Specifications

• product brand name: SIRIUS
• product category: SIRIUS 3RQ4 coupling relay, narrow design
• product designation: Coupling relay with plug-in relay
• design of the product: output coupling link
• product type designation: 3RQ4
• display version LED: Yes
• product feature protective coating on printed-circuit board: No
• product component relay output: Yes
• product component semi-conductor output: No
• power loss [W] maximum: 0.25 W
• consumed active power: 0.3 W
• insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value: 300 V
• surge voltage resistance rated value: 4 kV
• maximum permissible voltage for protective separation between control and auxiliary circuit: 300 V
• maximum permissible voltage for protective separation between control and auxiliary circuit according to IEC 60947-1: 300 V
• percental drop-out voltage related to the input voltage: 10 %
• flammability class of enclosure material: UL94 V-0
• shock resistance according to IEC 60068-2-27: sinusoidal half-wave 15g / 11 ms
• vibration resistance according to IEC 60068-2-6: 6 ... 150 Hz: 2 g
• operating frequency maximum: 72 000 1/h
• switching behavior: monostable
• mechanical service life (operating cycles) typical: 10 000 000
• electrical endurance (operating cycles) at AC-15 at 250 V typical: 100 000
• thermal current: 6 A
• reference code according to IEC 81346-2: K
• control supply voltage at DC rated value: 24 V
• operating range factor control supply voltage rated value at DC initial value: 0.8
• operating range factor control supply voltage rated value at DC full-scale value: 1.25
• ON-delay time at AC maximum: 10 ms
• ON-delay time at DC maximum: 10 ms
• OFF-delay time maximum: 10 ms
• design of the switching function positively driven: No
• property of the output short-circuit proof: No
• product component plug-in socket: Yes
• design of the relay operating mechanism: poled
• design of the fuse link for short-circuit protection of the auxiliary switch required: fuse gG: 4 A
• type of switching contact: Changeover contact
• material of switching contacts: AgSnO2
• number of CO contacts for auxiliary contacts: 1
• operational current of auxiliary contacts at AC-15 at 24 V: 3 A
• operational current of auxiliary contacts at AC-15 at 250 V: 3 A
• operational current of auxiliary contacts at DC-13 at 24 V: 1 A
• operational current of auxiliary contacts at DC-13 at 125 V: 0.2 A
• operational current of auxiliary contacts at DC-13 at 250 V: 0.1 A
• contact reliability of auxiliary contacts: one incorrect switching operation of 100 million switching operations (17 V, 5 mA)
• type of voltage: DC
• ampacity of the output relay at AC-15 at 250 V at 50/60 Hz: 3 A
• ampacity of the output relay at DC-13 at 24 V: 1 A
• ampacity of the output relay at DC-13 at 125 V: 0.2 A
• ampacity of the output relay at DC-13 at 250 V: 0.1 A
• electromagnetic compatibility: acc. to EN 60947-5-1
• EMC emitted interference according to IEC 60947-1 ambience: A (industrial sector)
• EMC immunity according to IEC 60947-1 corresponds to degree of severity: 3
• conducted interference due to burst according to IEC 61000-4-4: 2 kV
• conducted interference due to conductor-earth surge according to IEC 61000-4-5: 2 kV
• conducted interference due to conductor-conductor surge according to IEC 61000-4-5: 1 kV
• field-based interference according to IEC 61000-4-3: 10 V/m
• electrostatic discharge according to IEC 61000-4-2: 6 kV contact discharge / 8 kV air discharge
• display version as status display by LED: LED green
• product function removable terminal: No
• type of electrical connection for auxiliary and control circuits: screw-type terminals
• type of connectable conductor cross-sections solid: 1x (0.25 ... 2.5 mm 2)
• type of connectable conductor cross-sections finely stranded with core end processing: 1x (0.25 ... 2.5 mm 2), 2x (0.25 ... 1.5 mm 2)
• for AWG cables solid: 1x (20 ... 14), 2x (20 ... 16)
• connectable conductor cross-section solid: 0.25 ... 2.5 mm 2
• connectable conductor cross-section finely stranded with core end processing: 0.25 ... 2.5 mm 2
• AWG number as coded connectable conductor cross section solid: 20 ... 14
• tightening torque with screw-type terminals: 0.5 ... 0.6 N m
• size of the screwdriver tip: 3,0 x 0,5 mm
• stripped length: 10 mm
• mounting position: any
• fastening method: snap-on mounting

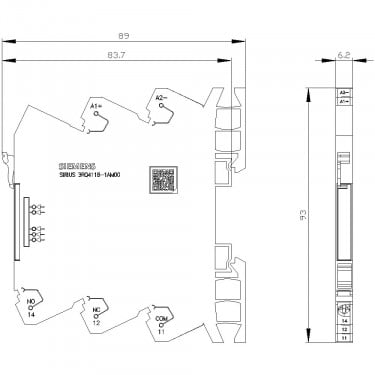

• height: 93 mm
• width: 6.2 mm
• depth: 88.5 mm
• required spacing with side-by-side mounting forwards: 0 mm
• required spacing with side-by-side mounting backwards: 0 mm
• required spacing with side-by-side mounting upwards: 0 mm
• required spacing with side-by-side mounting downwards: 0 mm
• required spacing with side-by-side mounting at the side: 0 mm
• required spacing for grounded parts forwards: 0 mm
• required spacing for grounded parts backwards: 0 mm
• required spacing for grounded parts upwards: 0 mm
• required spacing for grounded parts at the side: 0 mm
• required spacing for grounded parts downwards: 0 mm
• required spacing for live parts forwards: 0 mm
• required spacing for live parts backwards: 0 mm
• required spacing for live parts upwards: 0 mm
• required spacing for live parts downwards: 0 mm
• required spacing for live parts at the side: 0 mm
• installation altitude at height above sea level maximum: 2 000 m
• ambient temperature during operation: -25 ... +60 C
• ambient temperature during storage: -40 ... +85 C
• ambient temperature during transport: -40 ... +85 C
• relative humidity during operation: 10 ... 95 %
