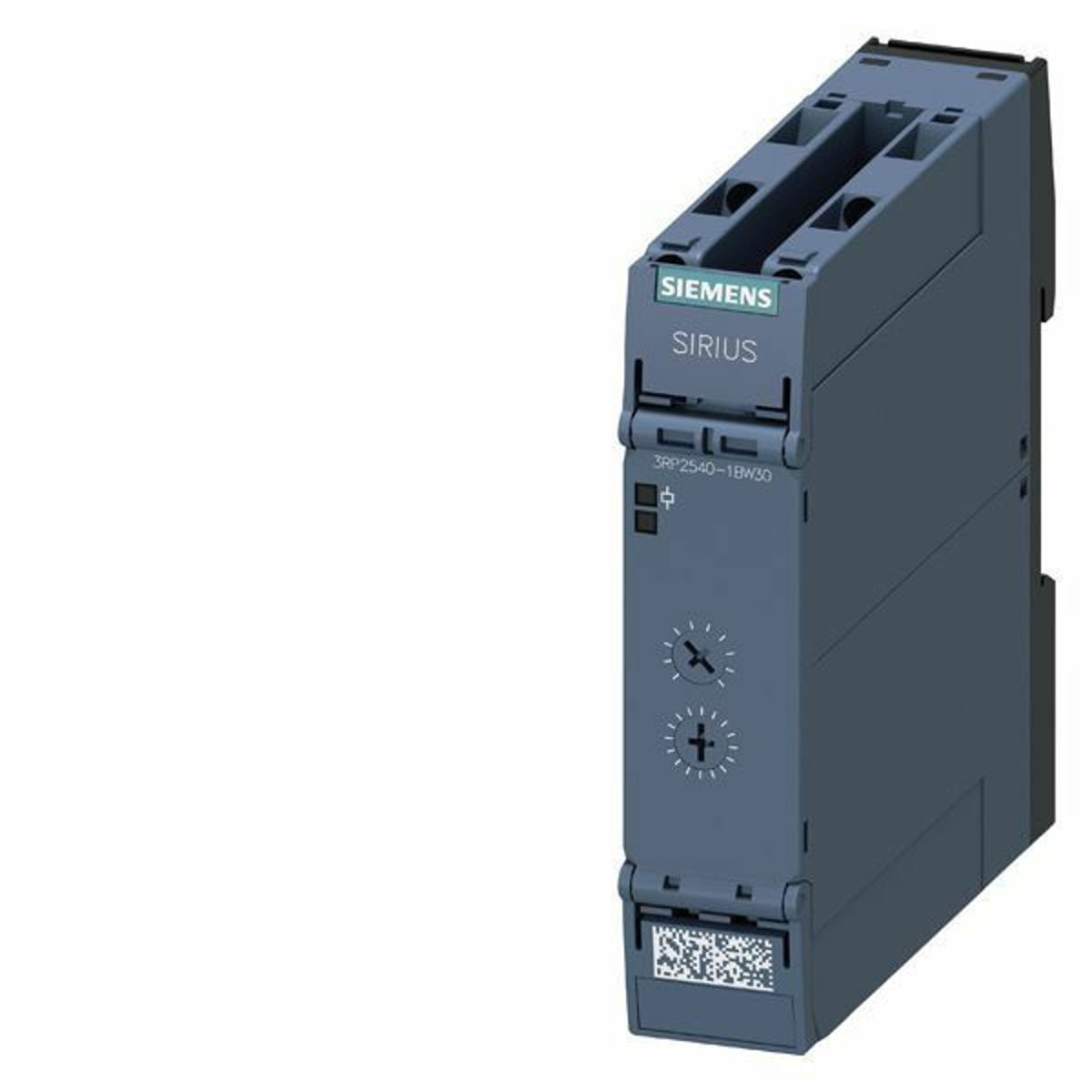

Siemens 3RP25401BW30 Timing Relay, Electronic, Off-Delay, 0.05 to 600 s Setting

Product Description

The SIEMENS 3RP25401BW30 is an electronic timing relay with an off-delay function, designed for use without a control signal. It features a non-volatile relay with definite passing make contact. This relay offers 7 time setting ranges from 0.05 seconds to 600 seconds and operates on 12-240 V AC/DC. Includes 2 CO (changeover) contacts and an LED indicator, with screw terminals for connection.

• Electronic timing relay with off-delay function
• Time setting ranges from 0.05 seconds to 600 seconds
• Operates on 12-240 V AC/DC

Product Highlights

Electronic timing relay with off-delay, 0.05 to 600s, 12-240V AC/DC, LED indicator, and screw terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RP25401BW30
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RP25401BW30
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• MPN: 3RP25401BW30
• Contact Form: DPDT
• Contact Rating: R300 / B300 A
• Control Voltage: 240 V
• Current Rating: 5 A
• Function: Off-Delay
• Light Source: LED
• Mounting Type: DIN Rail
• Operating Voltage: 12 to 240 V
• Primary Type: Time Delay Relays
• Series: 3RP25 Series
• Termination: screw
• Relay Type: Mechanical Relay
• Delay Time: 0.05 Sec ~ 600 Sec
• Contact Rating @ Voltage: 3A @ 250VAC
• Voltage - Supply: 12 ~ 240VAC/DC
• Termination Style: Screw Terminal
• Timing Adjustment Method: Screwdriver Slot
• Timing Initiate Method: Input Voltage
• Base Product Number: 3RP2540
• UNSPSC: 39122329
• Coil Voltage: 12 to 240
• Enclosure Type: IP20
• Voltage Rating: 300
• Type: Electronic
• Operation Mode: Off-Delay
• Amperage Rating: 3
• Electrical Connections: Screw Terminal
• Time Setting: 0.05 to 600 s
• Mounting type: Rail/Snap-On/Threaded
