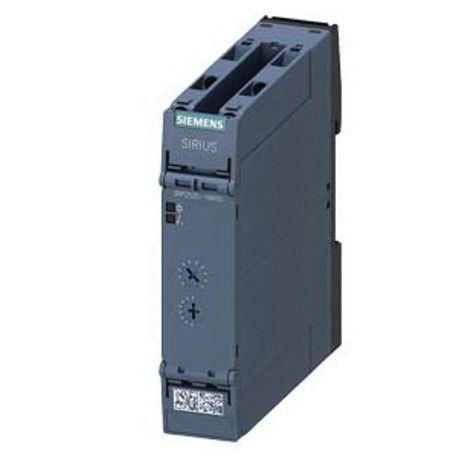

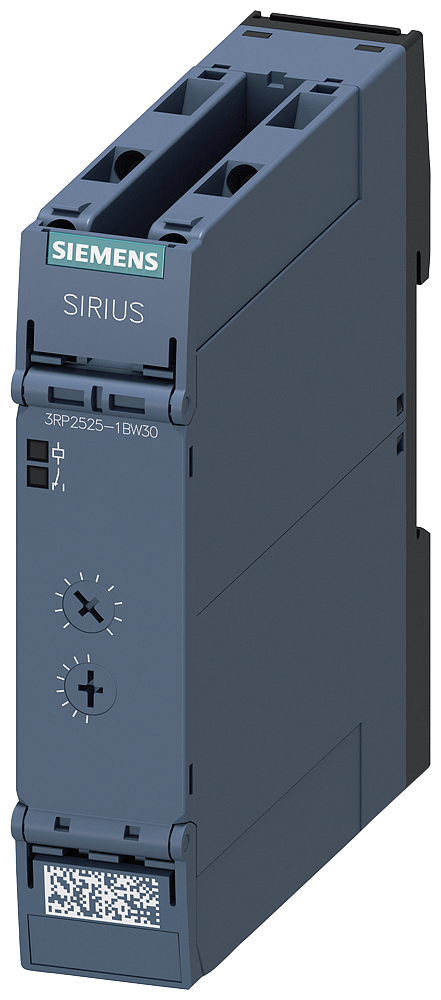

Siemens 3RP2525-1BW30 T-REL, DELAY, 2CO, 15 TIME SET. RANGES, 0.05S...100HR, 12...240V AC/DC AT AC 50/60HZ, SCREW TERMINAL

Product Description

The Siemens 3RP2525-1BW30 is an electronic timing relay that features a delay mechanism with dual changeover contacts. This relay is equipped with a time setting range from zero point zero five seconds to one hundred hours. It operates at a voltage of twelve to two hundred forty volts AC or DC at fifty or sixty hertz. The device uses a screw terminal connection for easy installation and integration into existing systems.

• Time setting range of 0.05 seconds to 100 hours
• Compatible with 12 to 240 volts AC/DC
• Dual changeover contact configuration

Product Highlights

Reliable timing control for automation and control applications.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: 3RP25251BW30
• Country of Origin: Germany

Technical Specifications

• Time Setting: 0.05 seconds to 100 hours
• Voltage Rating: 12 to 240 VAC/VDC
• Operation Mode: On-Delay
• Electrical Connections: Screw Terminal
• Contact Form: 2CO
• Dimensions: 5 inches H x 1.4 inches W x 4.25 inches D
• Weight: 0.375 lb
• Temperature Rating: -25 to 60 degrees C
