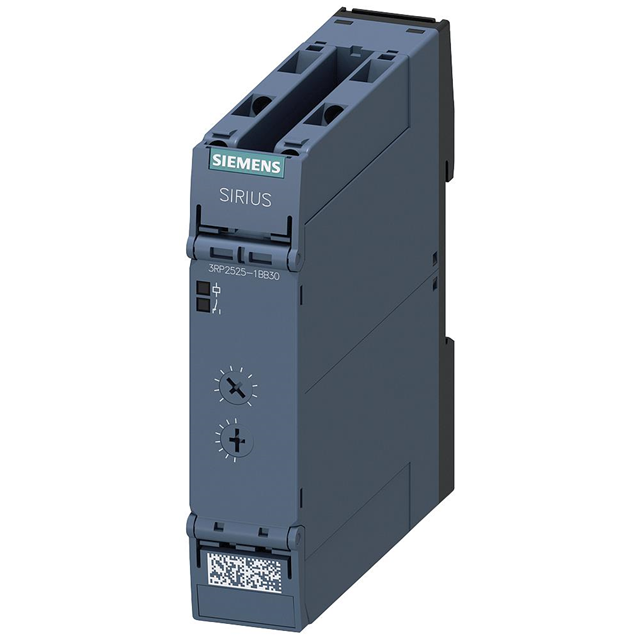

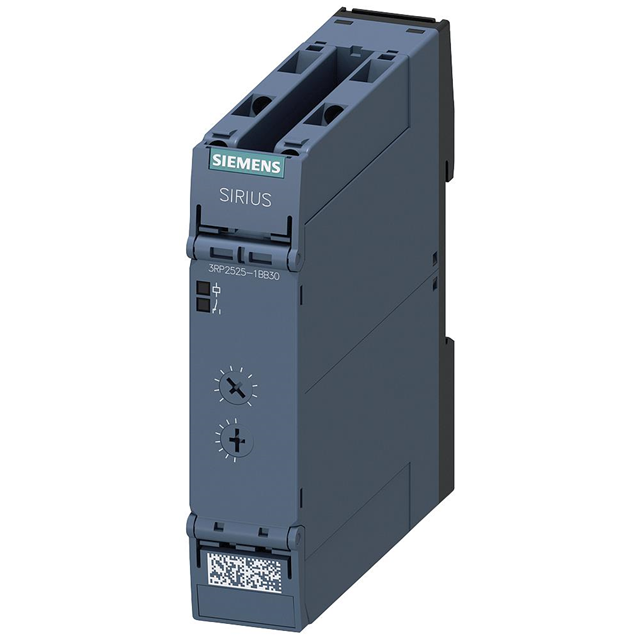

Siemens 3RP2525-1BB30 Timing relay 24 V AC/DC (17.5 mm/22.5 mm) 3RP25251BB30

Product Description

Siemens 3RP2525-1BB30 is an electronic on-delay timing relay with two change-over contacts designed for 24 V AC/DC operation. It provides seven selectable time ranges from 0.05 seconds to 100 hours, an LED status indicator, and screw terminal connections. The relay supplies DPDT/2 CO outputs rated 250 VAC at 3 A and fits the compact SIRIUS 3RP25 form factor for DIN rail mounting with IP20 protection.

• Seven time ranges: 0.05 s to 100 h; electronic on-delay function
• Two change-over contacts (DPDT / 2 Form C), contact rating 3 A @ 250 VAC
• 24 V AC/DC supply (50/60 Hz), LED indicator, screw terminal connections, DIN rail mount

Product Highlights

Electronic on-delay timer, 0.05 s–100 h range; 2 change-over contacts rated 3 A/250 VAC; 24 V AC/DC supply; DIN rail mount; IP20

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RP2525-1BB30
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• MPN: 3RP2525-1BB30
• Product family: SIRIUS 3RP25 timing relays (17.5 mm and 22.5 mm)
• Function: Electronic on-delay (delayed switching on)
• Time ranges: 0.05 s ... 100 h (7 time ranges)
• Contacts: 2 change-over (DPDT / 2 Form C)
• Contact rating: 3 A @ 250 VAC
• Supply Voltage: 24 V AC/DC (50/60 Hz)
• Indicator: LED
• Terminal type: Screw terminal
• Mounting Type: DIN rail mounting
• Timing adjustment method: Screwdriver slot
• Relay type: Electronic timing relay
• Timing initiate method: Input voltage
• IP rating: IP20
• Operating temperature: -25 ... 60 °C
• Net weight: 0.162 kg
• EAN / GTIN: 4011209943643
• Country of origin: Germany
• RoHS status: ROHS3 Compliant
• REACH status: REACH Unaffected
• ECCN: EAR99
