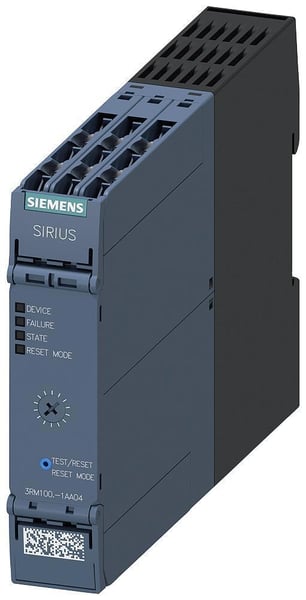

Siemens 3RM10071AA04 Sirius 3Rm1 Motor Starter 1.6-7.0A Dc

Product Description

The SIEMENS 3RM10071AA04 SIRIUS 3RM1 motor starters are compact devices, 22.5 mm wide, combining many functions in a single enclosure. It consists of relay contacts, power semiconductors (hybrid technology), and a solid-state overload relay for switching induction under normal operating conditions.

• Inrush current is conducted briefly via the semiconductors.
• Continuous current is conducted via relay contacts.
• Lower heat losses compared with the semiconductor.

Product Highlights

The SIEMENS Sirius 3RM1 motor starter provides reliable motor control and protection in a compact design, ideal for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RM10071AA04
• Country of Origin: DE

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3RM10071AA04
• Series: 3RM Series
• Unit of Measure: EA
• UPC Code: 887621167974
• Overview: D.O.L. Motor Starter
• Part Number #: 3RM10071AA04
• SKU #: 2267579
• Amperage Rating: 7 A
• Auxiliary Contact Rating: 1CO
• Coil Voltage: 24 V DC
• Enclosure Type: IP20
• Frequency Rating: 50/60 Hz
• Full Load Current: 6.1 A
• Motor Power: 1/4 hp, 1/2 hp, 1 hp, 1-1/2 hp, 3 hp
• Number of Poles: 3
• Operating Cycles: 30000000 Cycles
• Operating Temperature: -25 to 60 deg C
• Overload Relay: Class 10 Electronic
• Phase: 3
• Wattage: 0.55 to 3 kW
• Connection type: Screw
• Manufacturer Name: Siemens
• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Siemens
• Voltage - Load: 500V
• Current - Output: 7A
• Part Status: Active
• Wattage - Load: 3000 W
• Type: Module
• Voltage - Supply: 24VDC
• Motor Type: AC Motor
• Mounting Type: DIN Rail Mount
• Control / Drive Type: Motor Starter
• Maximum Current (AC): 7 A
• Nominal Coil Voltage @ 60Hz: 24V DC
• Minimum Overload Relay Current Setting: 1.6 A
• Maximum Overload Relay Current Setting: 6.1 A
• Trip Class: 10A
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO/1NC
• Exterior Operator Controls: None
• Pilot Lights Included: LED Status Indicator
• Wire Termination Type: Screw
• Maximum Voltage Rating: 500V
• Horsepower @ Single Phase - 120V AC: 1/4 hp
• Horsepower @ Single Phase - 240V AC: 1/2 hp
• Horsepower @ Three Phase - 208V AC: 1 hp
• Horsepower @ Three Phase - 240V AC: 1-1/2 hp
• Horsepower @ Three Phase - 480V AC: 3 hp
• NEMA Enclosure Rating: No Enclosure
• IP Rating: IP20
• Resistance Properties: Shock Resistant; Vibration Resistant
• Mounting Postion: Horizontal; Vertical
• Mounting Style: DIN Rail
• Maximum Operating Temperature: 122 00b0F
• Minimum Operating Temperature: -13 00b0F
• Mechanical Operating Durability: 30,000,000
• Response Time: 60 to 90 msec (OFF-Delay Time); 60 to 90 msec (ON-Delay Time)
• Standards: CCC; CE; CSA; EAC; RCM; UL Listed
• Rated Power kW: 3
• Rated Voltage AC V: 400
• HP Rating: 3
• Overload Release Min. A: 1.6
• Overload Release Max. A: 7
• Control Voltage Max. - DC V: 24
• Operating Voltage Min. V: 48
• Operating Voltage Max. V: 500
• Rated Current A: 7
• Number of Phases: 3
• Insulation Voltage V: 500
• Power Rating: 3 kW
• Environmental Classification: RoHS
