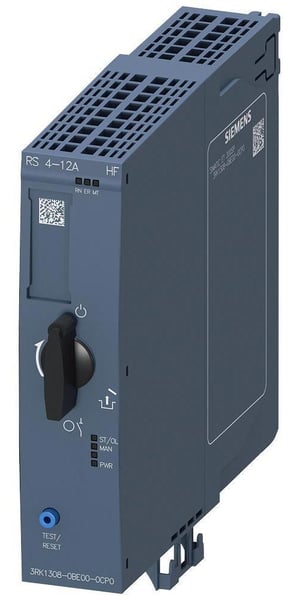

Siemens 3RK13080BE000CP0 ET 200SP Reversing Starter 4.0 12A

Product Description

The SIEMENS 3RK13080BE000CP0 ET 200SP Reversing Starter 4.0 is a module designed for AC motor control. This reversible motor starter is suitable for load voltages of 48 to 500V and provides an output current of 12A. It features a solid-state overload relay and IP20 enclosure.

• Suitable for AC motors with reversible control/drive type
• Operating temperature range of -25°C to 60°C
• 3 poles with plug contact connection type

Product Highlights

The SIEMENS 3RK13080BE000CP0 is a high-feature reversing motor starter with a 12 A amperage rating at 400 VAC and motor power of 2.5 to 5.5 kW at 400 VAC.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RK13080BE000CP0

Technical Specifications

• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Manufacturer: Siemens
• Series: 3RK1
• Part Status: Active
• Type: Module
• Motor Type: AC Motor
• Control / Drive Type: Motor Starter, Reversible
• Number of Motors: 1
• Voltage - Load: 48 ~ 500V
• Current - Output: 12A
• Wattage - Load: 5500 W
• Voltage - Supply: 20.4 ~ 28.8VDC
• Mounting Type: Chassis Mount
• Operating Temperature: -25°C ~ 60°C
• Overload Relay: Solid-State
• Frequency Rating: 50/60 Hz
• Amperage Rating: 12 A
• Phase: 3
• Voltage Rating: 48 to 500 VAC
• Operating Cycles: 30000000 Cycles
• Number Of Poles: 3
• Connection Type: Plug Contact
• Enclosure Type: IP20
• Setting: 4 to 12 A
• Motor Power: 2.5 to 5.5 kW
• Timing: 20 ms On, 35 to 50 ms Off
