Siemens 3RH29112XA220MA0 Aux. Switch 2No+2Nc For S00 & S0

Product Description

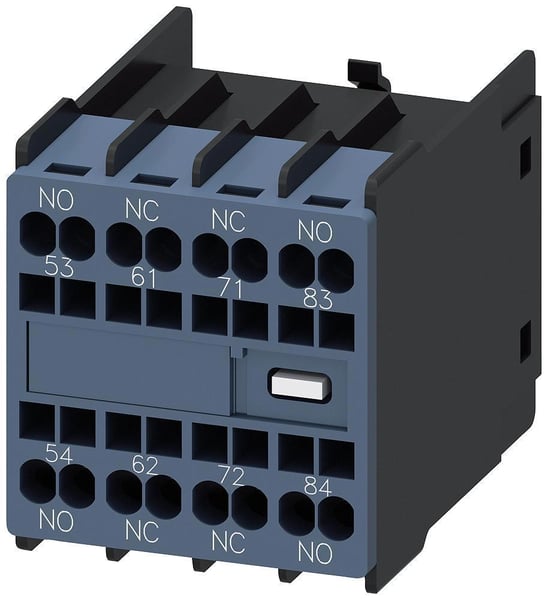

The SIEMENS 3RH29112XA220MA0 is an auxiliary switch designed for use with 3RH and 3RT contactors. It replaces or adds contacts to Siemens contactors. The auxiliary switch features a front mounting design and includes 2 NO and 2 NC contacts.

• Compatible with SIRIUS 3RH2 and 3RT2 contactor series
• Features spring-type terminals for secure connections
• Maximum voltage rating of 690V AC

Product Highlights

The SIEMENS 3RH29112XA220MA0 auxiliary switch is ideal for adding or replacing contacts in Siemens contactor systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH29112XA220MA0
• Country of Origin: Czech Republic

Technical Specifications

• Category: Relays
• Part Status: Active
• Manufacturer: Siemens
• Accessory Type: Auxiliary Switch
• Series: SIRIUS 3RH2
• For Use With/Related Products: 3RH, 3RT Contactors
• Packaging: Bulk
• Base Product Number: 3RH29112
• Brand: SIEMENS
• Manufacturer Part Number: 3RH29112XA220MA0
• Mounting Type: Front/Snap-On
• Number of Poles: 3
• Terminal Type: Spring Loaded Terminals
• Type: General Purpose Contactors
• Number of Contacts: 4
• Compatible with Series: SIRIUS 3RH2 Contactor Relays, SIRIUS 3RT2 Contactors
• Frame Size: S0, S00, S2, S3
• NEMA Size: 0, 00
• Mounting Location: Front
• Auxiliary Contact Form: 2NO/2NC
• Maximum Voltage Rating: 690V AC
• Terminal Connection Type: Spring Loaded
• Voltage Rating: 24/230 V AC
• Amperage Rating: 10 A
• Operating Temperature: -25 to 60 deg C
• Operating Cycles: 10000000 Cycles
• Environmental Conditions: -55 to 80 deg C Storage Temperature
• Size: SZ 00/SZ 0
• Suitable For Use With: 3RH/3RT Contactor Relay and Power Contactor
• IP Rating: IP20
• Number of Normally Open Contacts: 2
• Number of Normally Closed Contacts: 2
