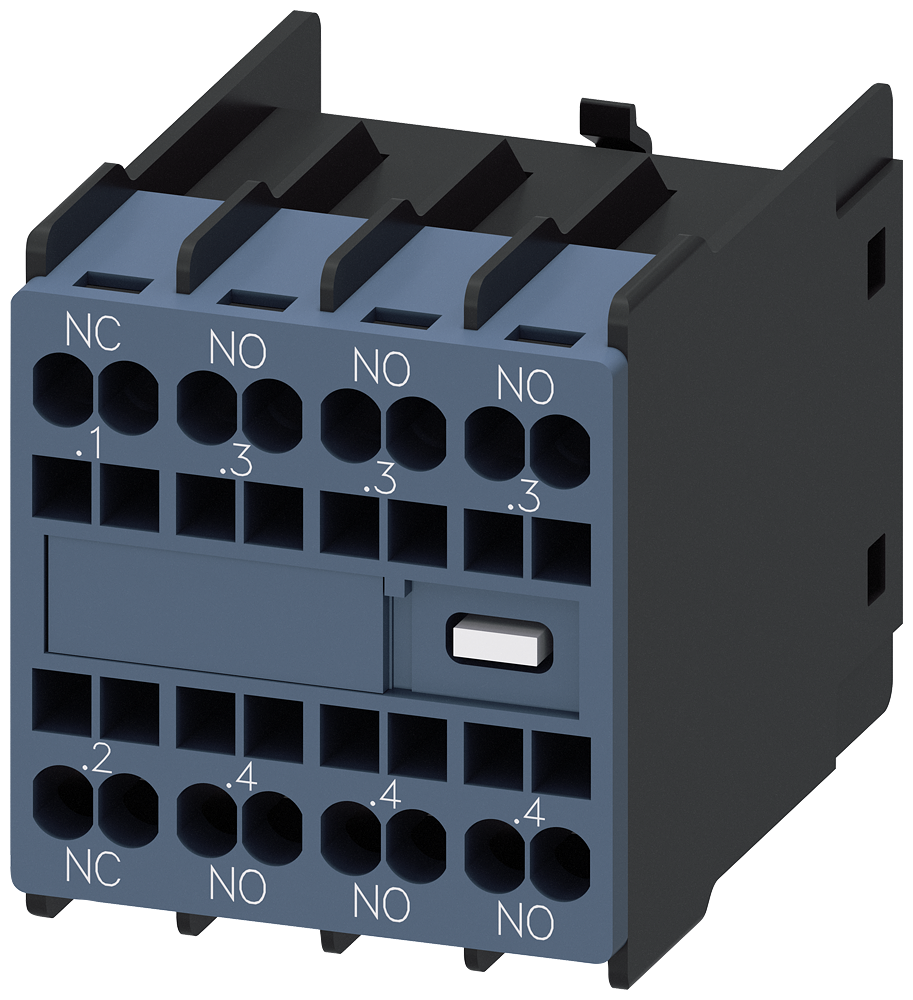

Siemens 3RH29112HA31 Aux. Switch 3NO+1N

Product Description

The Siemens 3RH29112HA31 auxiliary switch block features a front mount with 3NO+1NC contact configuration. It is designed for contactor relays and motor contactors, sizes S00 and S0, and utilizes a spring-loaded terminal. This auxiliary switch block provides reliable switching performance in industrial applications.

• Front mounting
• 3NO+1NC contact configuration
• Spring-loaded terminals

Product Highlights

Auxiliary switch block for contactor relays and motor contactors with spring-loaded terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH29112HA31
• Country of Origin: Czech Republic

Technical Specifications

• Connection Type: Spring Clamp Connection
• Brand: Siemens
• Width: 2.130 in
• Height: 1.86 Inch
• Length: 2.37 Inch
• Country of Origin: Czech Republic
• Part Number #: 3RH29112HA31
• Amperage Rating: 1/3/10 A
• Environmental Conditions: -55 to 80 deg C Storage Temperature
• Operating Cycles: 10000000/200000 Cycles
• Size: SZ 00/SZ 0
• Suitable For Use With: 3RH Contactor Relay, 3RT Contactor, Power Contactor, 3RH/3RT Contactor Relay and Power Contactor
• Mounting type: Front/Snap-On
• Contact Configuration: 1NC-3NO
• Contact Current Rating: 10 A
• Contact Form: SPST-NC + SPST-NO
• Manufacturer Part Number: 3RH29112HA31
• Mounting Style: Snap-on Mount
• Number of Contacts: 4
• Series: 3RH Series
• Terminal Type: Spring Terminal
• MPN: 3RH29112HA31
