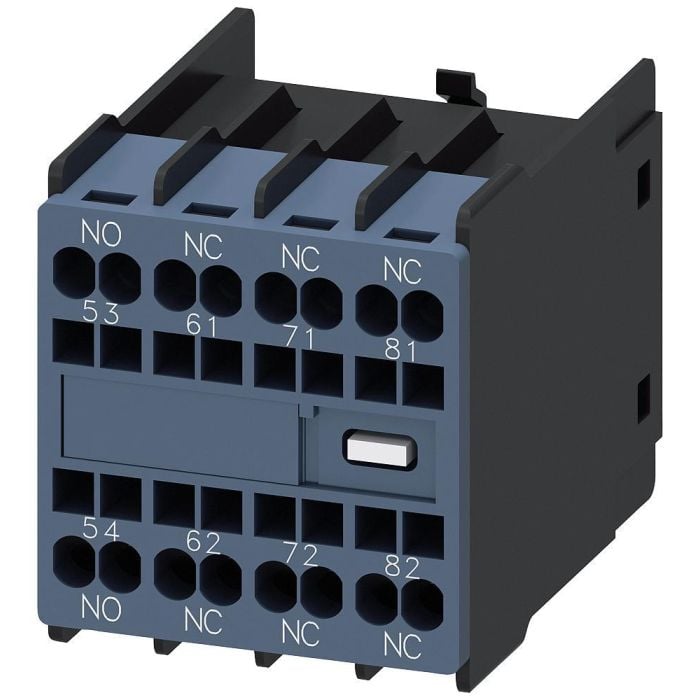

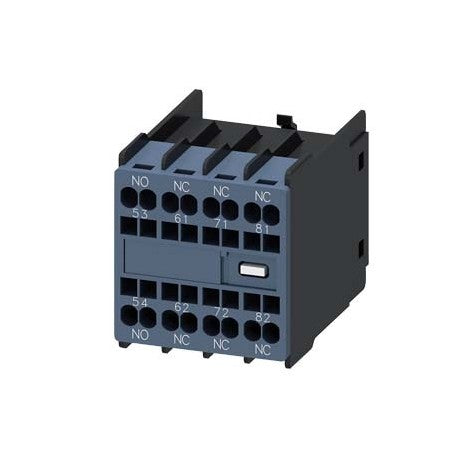

Siemens 3RH29112GA13 Aux. Switch 1NO+3NC for S00 Spring

Product Description

The SIEMENS 3RH29112GA13 is an auxiliary switch block designed for front mounting. Featuring 1NO+3NC contacts, it is suitable for contactor relays size S00 with spring-loaded terminals. It has a current path of 1 NO, 1 NC, 1 NC, 1 NC for contactor relays.

• Front mounted auxiliary switch block
• Features 1NO+3NC contacts
• Suitable for contactor relays size S00

Product Highlights

The SIEMENS 3RH29112GA13 auxiliary switch block is designed for reliable switching in industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH29112GA13
• Country of Origin: CZ

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3RH29112GA13
• Primary Type: Internal Accessories
• Type: Auxiliary Switches
• UPC Code: 662643910315
• Category: Relays
• Accessory Type: Auxiliary Switch
• Series: SIRIUS
• For Use With/Related Products: Contactors
• Packaging: Box
• Part Status: Active
• Base Product Number: 3RH29112
• Reference: 3RH29112GA13
• Item Code: 3RH29112GA13
• Condition: New
• Amperage Rating: 1/3/10
• Environmental Conditions: -55 to 80 deg C Storage
• Mounting Type: Snap-On
• Number of Contacts: 1NO-3NC
• Operating Cycles: 10000000 Mechanical/200000 Electrical
• Operating Temperature: -25 to 60
• Size: S00
• Suitable For Use With: 3RH2140 and 3RH2440 Spring Loaded Terminal Contactor Relays
• Voltage Rating: 24 to 230 V AC/24 to 220 V DC
• Country of Manufacture: CZ
• Number of contacts as change-over contact: 0
• Number of contacts as normally open contact: 1
• Number of contacts as normally closed contact: 3
• Rated operation current Ie at AC-15, 230 V: 6
• Type of electric connection: Spring clamp connection
• Mounting method: Other
• Model: Clip-on
• Number of fault-signal switches: 0
• Lamp holder: None
