Siemens 3RH29111LA11 Contact Module For Use With 3Rt2 Contactors, Contactor Relay, Power Contactor

Product Description

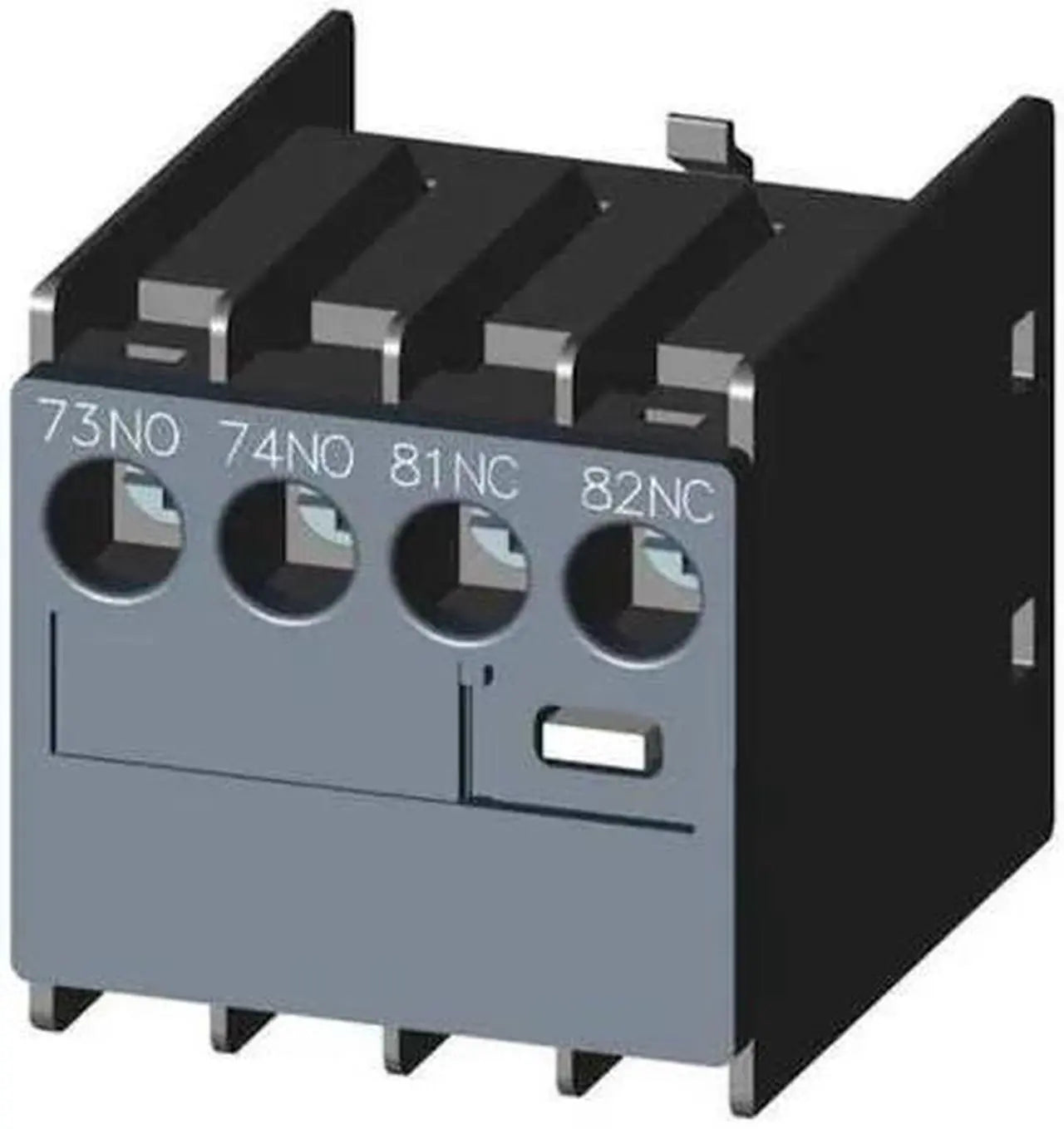

The SIEMENS 3RH29111LA11 is an auxiliary switch block designed for snapping onto the front of devices according to EN 50005. It is compatible with 3RH contactor relays, 3RT contactors, and power contactors. This auxiliary switch block features a 1NO+1NC contact configuration and screw terminals for easy connection.

• Suitable for use with 3RH Contactor Relay, 3RT Contactor, Power Contactor
• Features SPST-NC + SPST-NO contact form
• Mounts via snap-on

Product Highlights

The SIEMENS 3RH29111LA11 auxiliary switch block provides reliable switching with screw terminals and is designed for use with various contactors and relays.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH29111LA11

Technical Specifications

• UNSPSC Code: 39120000
• Accessory Type: Auxiliary Switch Block
• Alternate Mfr Part Number: 3RH2911-1LA11
• Brand: Siemens
• Contact Current Rating: 10 A
• Contact Form: SPST-NC + SPST-NO
• Manufacturer Part Number: 3RH29111LA11
• Minimum Operating Temperature: -25 °C
• Mounting Style: 60
• Mounting Type: Screw
• Number of Contacts: 2
• Operating Temperature: -25 to 60 °C
• Series: 3RH Series
• Size: S0, S00 in
• Temperature Operating Range: -25 to 60 °C
• Type: Auxiliary Switch Blocks
• Unit of Measure: EA
• UPC Code: 662643910148
• Operating Cycles: 10000000/200000 Cycles
• Suitable For Use With: 3RH Contactor Relay, 3RT Contactor, Power Contactor
• UNSPSC: 39121522
• Mounting: Front
• Number of Normally Open Contacts: 1
• Maximum Voltage Rating: 690V AC
• Number of Normally Closed Contacts: 1
• Terminal Connection Type: Screw Terminals
• Compatible with Series: SIRIUS 3RH2 Contactor Relays, SIRIUS 3RT2 Contactors
• Frame Size: S0, S00, S2, S3
• NEMA Size: 0, 00
• IP Rating: IP20
• Part Status: Active
• For Use With/Related Products: 3RH, 3RT Contactors
• Packaging: Bulk
• Base Product Number: 3RH29111
