Siemens 3RH29111HA02 Auxiliary Contacts Block 10A 2Nc Size S00 replacement 3RH2911-1HA02

Product Description

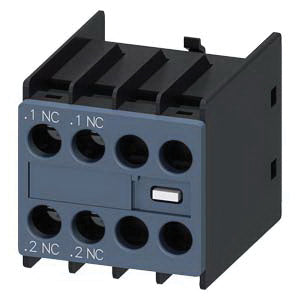

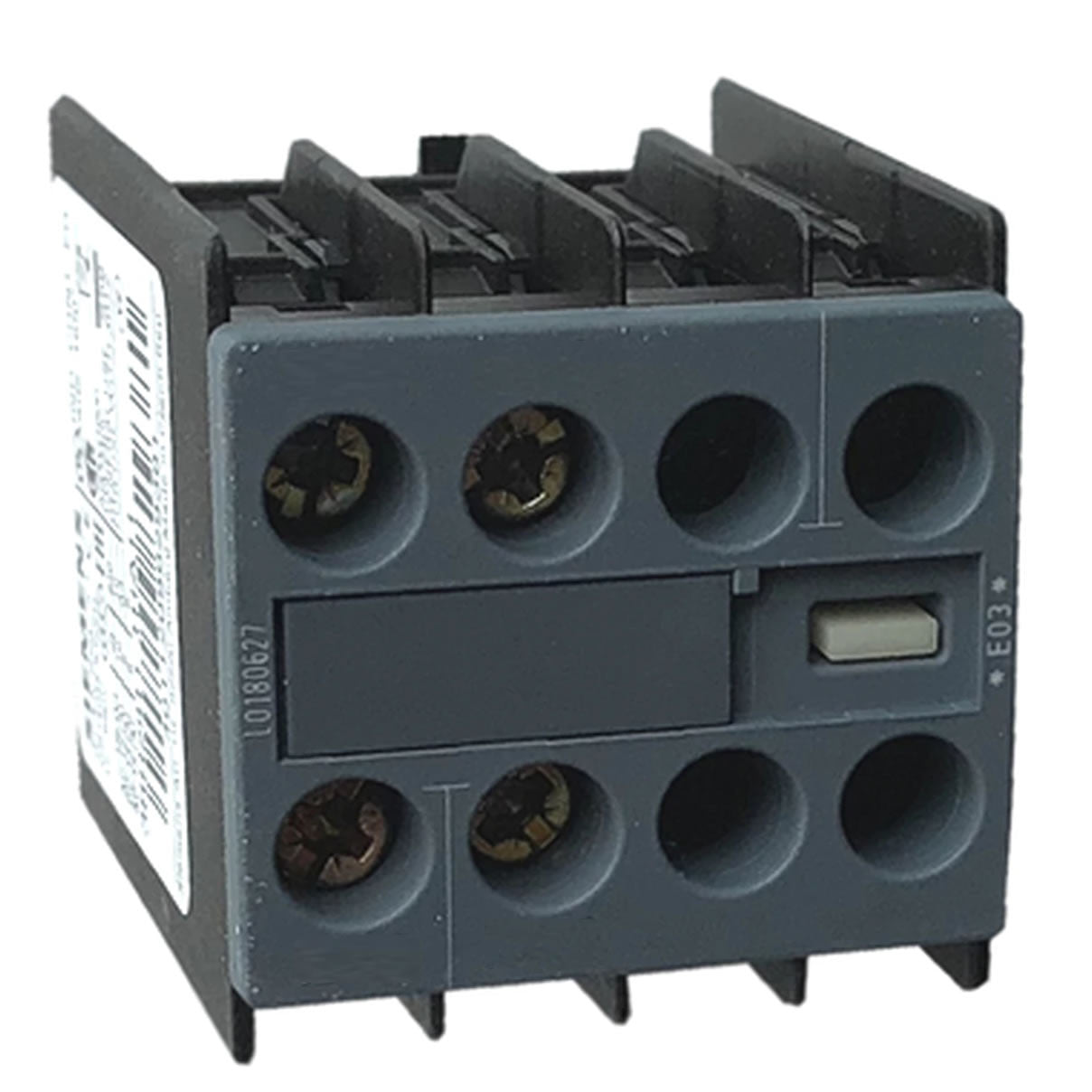

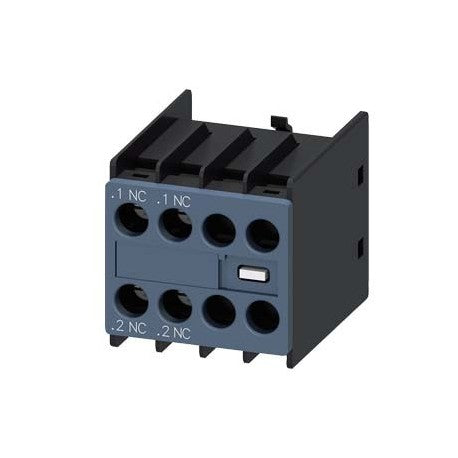

The SIEMENS 3RH29111HA02 is an auxiliary contact block with a 10A current rating and 2NC contact configuration, designed for use with Siemens contactors. It features a snap-on mount and screw terminals for easy installation. This auxiliary switch block is suitable for use with 3RH contactor relays and 3RT contactors.

• Contact current rating of 10A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC
• Features a snap-on mount for easy installation
• Suitable for use with 3RH contactor relays and 3RT contactors

Product Highlights

The SIEMENS 3RH29111HA02 auxiliary contact block provides reliable switching with screw terminals and a snap-on mount.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH29111HA02
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Contact Configuration: 2NC
• Contact Current Rating: 10 A
• Contact Form: DPST-NC
• Manufacturer Part Number: 3RH29111HA02
• Mounting Style: Snap-on Mount
• Number of Contacts: 2
• Series: 3RH Series
• Terminal Type: Screw Terminal
• Category: Relays
• Part Status: Active
• Manufacturer: Siemens
• Accessory Type: Auxiliary Switch
• For Use With/Related Products: 3RH, 3RT Contactors
• Base Product Number: 3RH29111
• Operating Cycles: 10000000/200000 Cycles
• Suitable For Use With: 3RH Contactor Relay, 3RT Contactor, Power Contactor
• UNSPSC: 39121522
• Country of Origin: Germany
• Reference: 3RH29111HA02
• Number of poles: 2
• Contacts: 2 normally closed (N.C.)
• Mounting: Front
• Terminals: Screw
