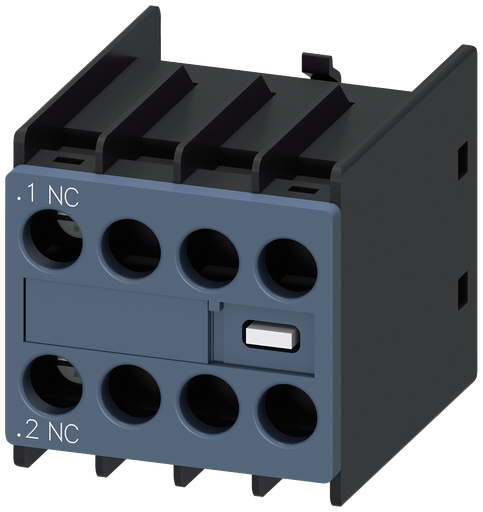

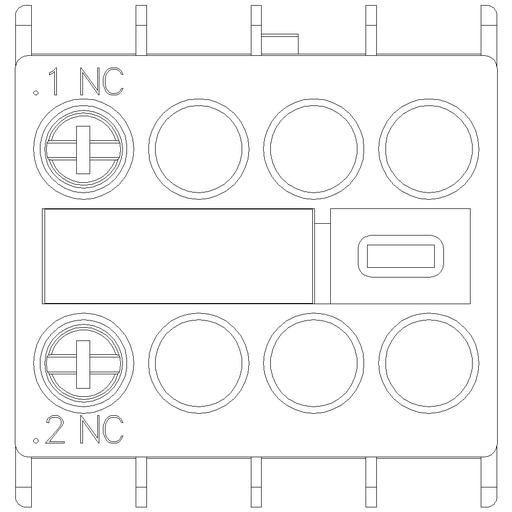

Siemens 3RH29111HA01 230 Volt 6 Amp 1NC Screw Terminal Contactor Auxiliary Switch Block

Product Description

The Siemens 3RH29111HA01 is an auxiliary switch block designed for use in motor control applications. It is a single normally closed (1NC) switch that connects through a screw terminal. This component is compatible with Siemens S00 and S0 contactors.

• Connection Type: Screw
• Contact Configuration: 1 NC
• Voltage Rating: Up to 690 Volt

Product Highlights

This auxiliary switch block is crucial for reliable motor control in industrial systems, ensuring safe operation and efficient functioning.

Product Information

Standard Information

• Brand: Siemens
• Sub Brand: Sirius

Technical Specifications

• Connection Type: Screw Connection
• Contact Configuration: 1 NC
• Enclosure: IP20
• Mounting Type: Snap-On
• Size Compatibility: S00, S0, S2, S3
• Terminal Type: Screw
• Voltage: 690 Volt
• Weight: 0.110 lb
• Dimensions: 2.15 Inch Height, 2.4 Inch Length, 1.650 Inch Width
• Country of Origin: Czech Republic
