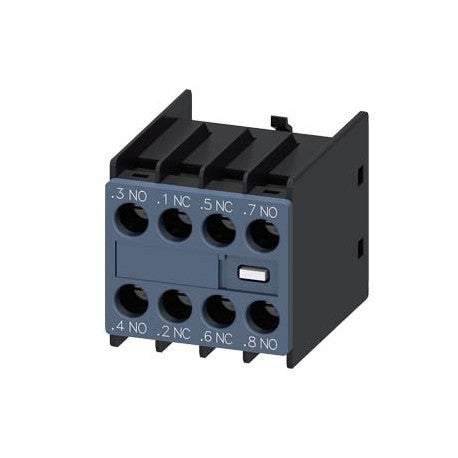

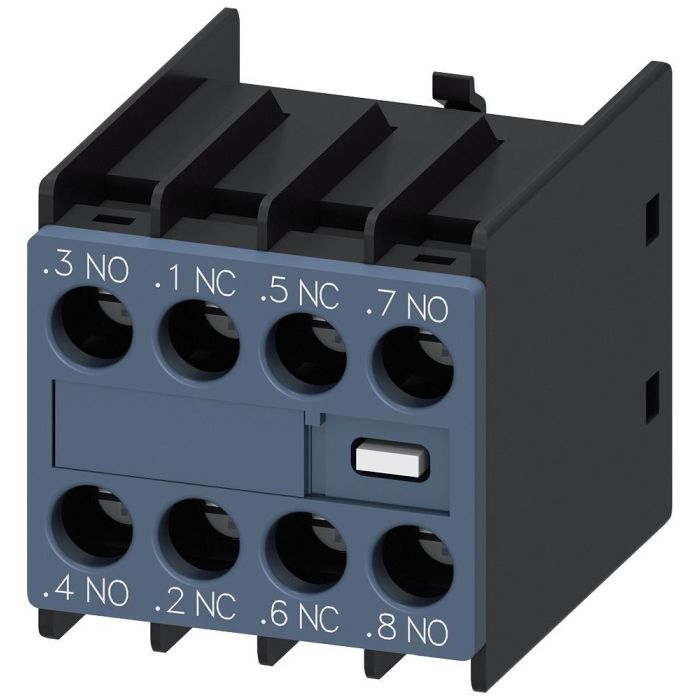

Siemens 3RH29111FB22 Auxiliary Switch 2no+2nc

Product Description

The SIEMENS 3RH29111FB22 is an auxiliary switch block designed for use with the Siemens contactors range. This switch block features a screw terminal and a 2NO+2NC contact form. It is suitable for use with 3RH contactor relays, 3RT contactors and power contactors.

• Contact Form: DPST-NC + DPST-NO
• Operating Cycles: 10000000 mechanical/200000 electrical cycles
• Suitable for Use With: 3RH Contactor Relay, 3RT Contactor, Power Contactor

Product Highlights

The SIEMENS 3RH29111FB22 auxiliary switch block offers reliable switching performance and easy installation with screw terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH29111FB22
• Country of Origin: CZ

Technical Specifications

• Brand: SIEMENS
• Contact Form: DPST-NC + DPST-NO
• Manufacturer Part Number: 3RH29111FB22
• Series: 3RH Series
• Alternate Catalog Number: 3RH2911-1FB22
• Catalog Number: 3RH29111FB22
• Country of Origin: CZ
• Harmonization Tariff Schedule Code: 8536509065
• Height: 2.1500 in
• Length: 2.7000 in
• Manufacturer: Siemens
• Replaced Catalog Number: 3RH1911-1FB22
• Standards: CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedRoHS CompliantABS ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedVDE Approved
• UNSPSC: 39121522
• UPC 12: 662643909951
• Width: 2.3000 in
• Operating Cycles: 10000000/200000 Cycles
• Suitable For Use With: 3RH Contactor Relay, 3RT Contactor, Power Contactor
• Part Number #: 3RH29111FB22
• Reference: 3RH29111FB22
• Item Code: 3RH29111FB22
• Condition: New
• Amperage Rating: 1/3/10
• Environmental Conditions: -55 to 80 deg C Storage
• Mounting Type: Snap-On
• Number of Contacts: 2NO-2NC
• Operating Temperature: -25 to 60
• Size: S00 to S0
• Type: Front
• Voltage Rating: 24 to 230 V AC/24 to 220 V DC
