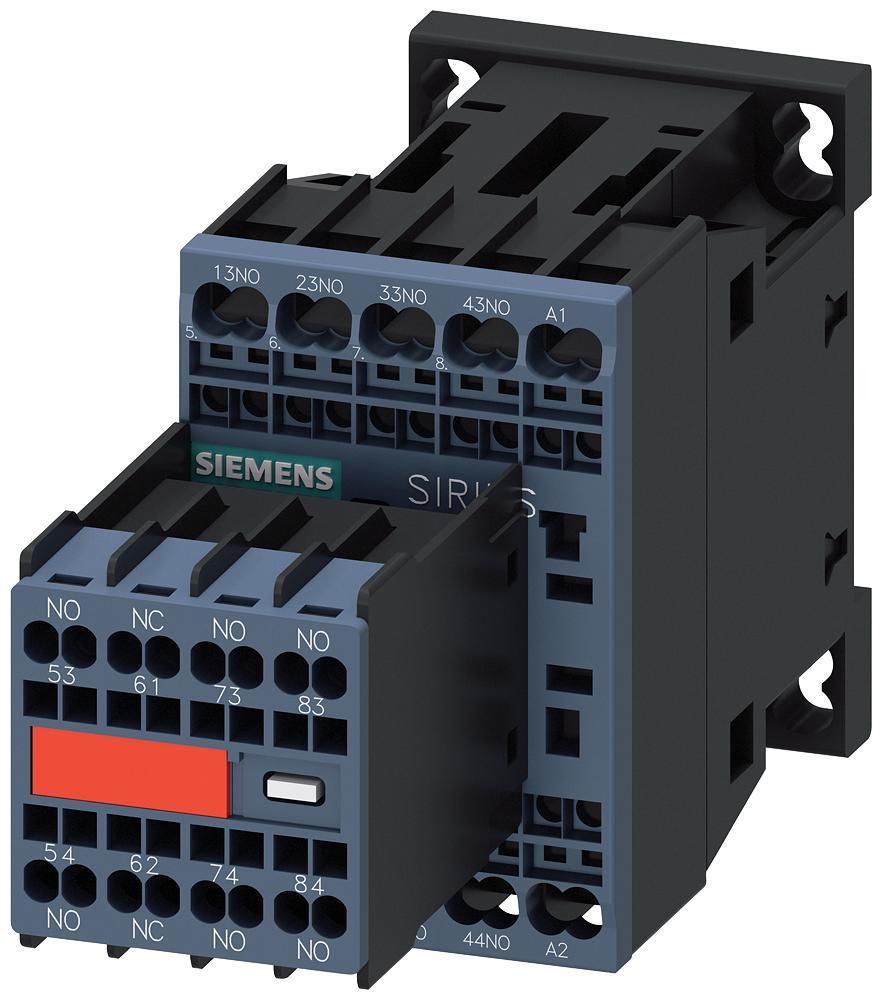

Siemens 3RH22712BB40 Contactor Relay 7no+1nc dc 24v spring

Product Description

The SIEMENS 3RH22712BB40 contactor relay features 7NO+1NC contacts, a 24V DC coil, and spring-type terminals. This size S00 relay is designed for permanent auxiliary switching and is suitable for SUVA applications. It has a 10 A amperage rating and an IP20 enclosure.

• 7NO-1NC (7 Form A/1 Form B) contact form
• Spring Loaded Terminal
• DIN Rail/Snap-On/Threaded Mounting

Product Highlights

The SIEMENS 3RH22712BB40 is ideal for various industrial applications requiring reliable switching.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH22712BB40

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3RH22712BB40
• Temperature Rating: -25 to 60 deg C
• Contact Rating: A600/Q600
• Amperage Rating: 10 A
• Terminal Type: Spring Loaded
• Enclosure Type: IP20
• Mounting Type: DIN Rail/Snap-On/Threaded
• Coil Voltage: 24 VDC
• Contact Form: 7NO-1NC 7 Form A/1 Form B
• Series: 3RH2
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Termination Style: Spring Terminal
• Operating Temperature: -25 C ~ 60 C
• Must Operate Voltage: 19.2 VDC
• Operate Time: 100 ms
• Release Time: 13 ms
• Coil Power: 4W
• Contact Rating (Current): 10 A
• Base Product Number: 3RH22712
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.41.0045
• REACH Status: REACH Unaffected
