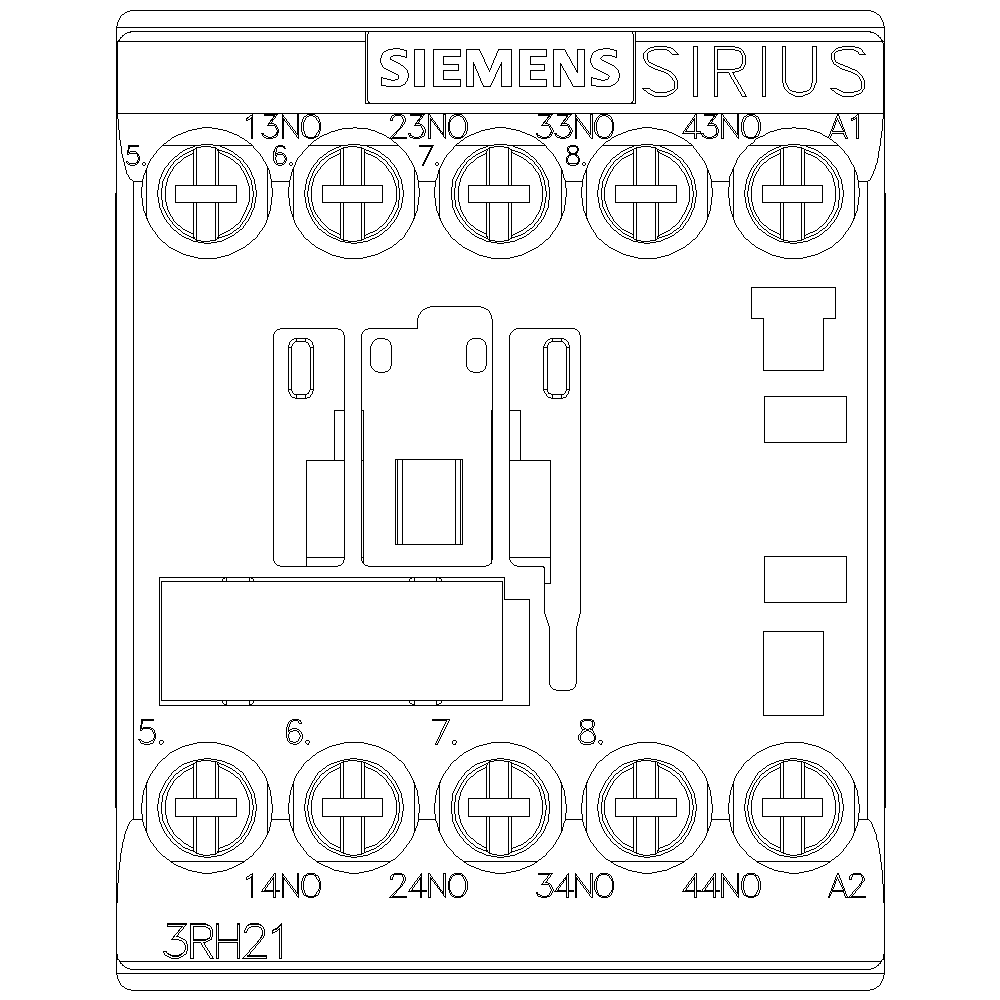

Siemens 3RH21401AK60 Contactor Relay 4NO 690 VAC / 600 VDC 120 VAC Coil

Product Description

The Siemens 3RH21401AK60 is a contactor relay designed for AC operation with a coil voltage of 120 VAC. This model features 4 normally open contacts, suitable for various control applications. It is you can use it for switching control signals in a control circuit. The SIRIUS 3RH2 contactor relay comes equipped with a reliable connection technology, which allows for the simultaneous switching of multiple auxiliary circuits.

• 4 NO (Normally Open) Contacts
• 110-120 VAC Coil Voltage
• Compatible with both AC and DC operations

Product Highlights

This versatile contactor relay is climate-resistant and has high contact reliability. It is designed for extensive use globally with approvals including IEC and UL/CSA.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: 3RH21401AK60
• Coil Voltage: 120 VAC
• Current Rating: 10 Amps
• Number of Poles: 4 Pole
• Contact Configuration: 4 NO
• Operating Cycles: 30000000
• Temperature Rating: -25 to 60 degrees C Ambient
• Mounting Type: Snap-On
