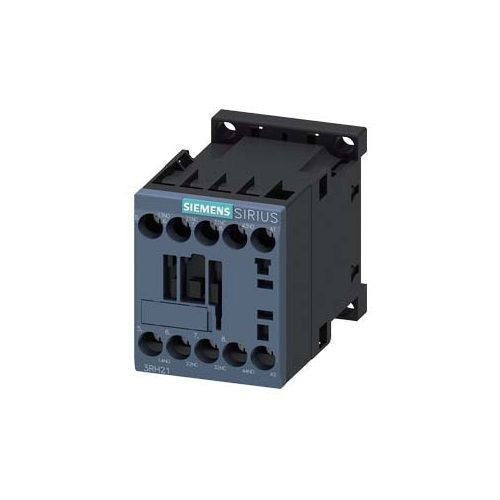

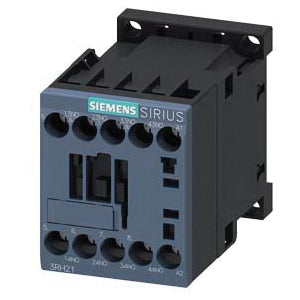

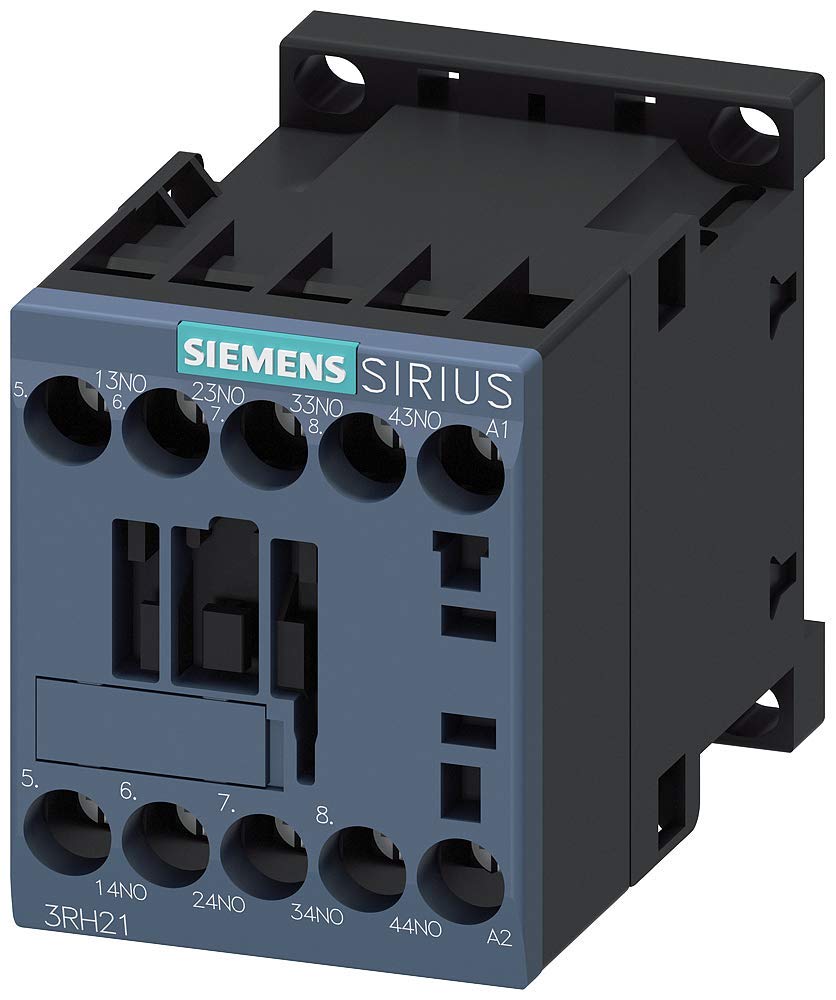

Siemens 3RH21401AB00 Contactor Relay 4NO 24V

Product Description

The SIEMENS 3RH21401AB00 is a contactor relay with 4 normally open (NO) contacts, designed for AC operation at 24V and a current rating of 10A. It features screw termination and is suitable for DIN rail mounting. This Sirius relay is size S00 and operates within a temperature range of -25 to 60 degrees C.

• 4 Normally Open (NO) Contacts
• AC 24V, 50/60 HZ
• Screw Terminal

Product Highlights

Contactor relay with 4NO contacts, 24V AC coil, and screw terminals. Ideal for industrial automation and control applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH21401AB00
• Country of Origin: Germany

Technical Specifications

• Size: S00
• Type: 3RH2 Relay
• Brand: SIEMENS
• Width: 1.970 in
• Height: 3.08 Inch
• Length: 2.45 Inch
• Sub Brand: Sirius
• Contact Rating: A600 / Q600
• Connection Type: Screw-Type Terminals
• Operating Cycles: 30000000
• Country of Origin: Germany
• Contact Configuration: 4 NO
• Operating Temperature: 60.0 to -25.0 degrees C
• Environmental Conditions: 95% Relative Humidity
• MPN: 3RH21401AB00
• Manufacturer: Siemens
• Model / MPN: 3RH2140-1AB00
• Number of Items: 1.0
• Control Voltage: 24 V
• Current Rating: 10 A
• Function: IEC Contactor
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -25 °C
• Mounting Style: DIN Rail Mount
• Number of Poles: 4
• Primary Type: IEC Contactor
• Series: 3RH Series
• Special Features: Auxiliary Contacts
• Standards: RoHS Compliant, AL : N / ECCN : EAR99
• Supply Voltage: 24 VAC
• Temperature Operating Range: -25 to 60°C °C
• Terminal Type: Screw
• Termination: screw
• UPC Code: 662643906721
• Voltage Rating: 24 V
• Frequency Rating: 50/60 Hz
• Mounting Type: Rail/Snap-On/Threaded
• Coil Voltage: 24 VAC
• Contact Form: 4NO
• Enclosure Type: IP20
• Part Number #: 3RH21401AB00
• UNSPSC: 39122331
• Poles: 4P
• Coil Volts: 24V AC 50/60Hz
