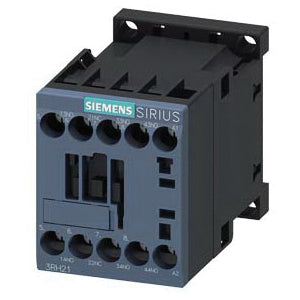

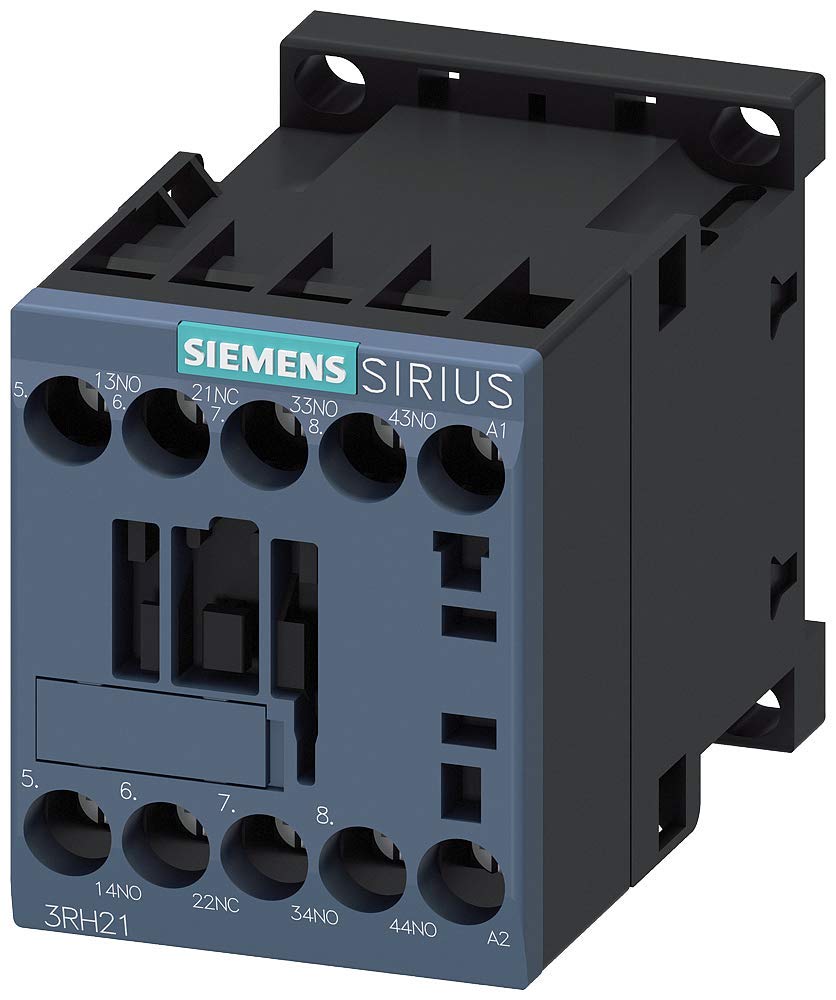

Siemens 3RH21311AK60 Contactor Relay 120 VAC 10 Amp 3NO 1NC 4-Pole AC Operated

Product Description

The SIEMENS 3RH21311AK60 is a SIRIUS 3RH2 contactor relay for switching control signals in the control circuit. This 4-pole contactor relay features standard-compliant terminal designations and reliable, time-saving connection technology. It is climate-resistant, has high contact reliability, and is suitable for worldwide use. The contactor relay has a coil voltage of 120 VAC and a current rating of 10 Amp.

• Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
• Standard-compliant terminal designations and a reliable and time-saving connection technology.
• Multiplication of outputs allows simultaneous switching of several auxiliary circuits.

Product Highlights

This contactor relay is ideal for applications requiring reliable switching of auxiliary circuits in control systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH21311AK60
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• MPN: 3RH21311AK60
• Sub Brand: Sirius
• Width: 1.970 in
• Height: 3.08 Inch
• Length: 2.45 Inch
• Voltage: 110-120 VAC
• Mounting Type: Snap-On
• Conductor Size: 20-16 AWG/18-14 AWG
• Contact Rating: A600,Q600
• Connection Type: Screw-Type Terminals
• Number of Poles: 4 Pole
• Operating Cycles: 30000000
• Temperature Rating: -25 to 60 degrees C Ambient

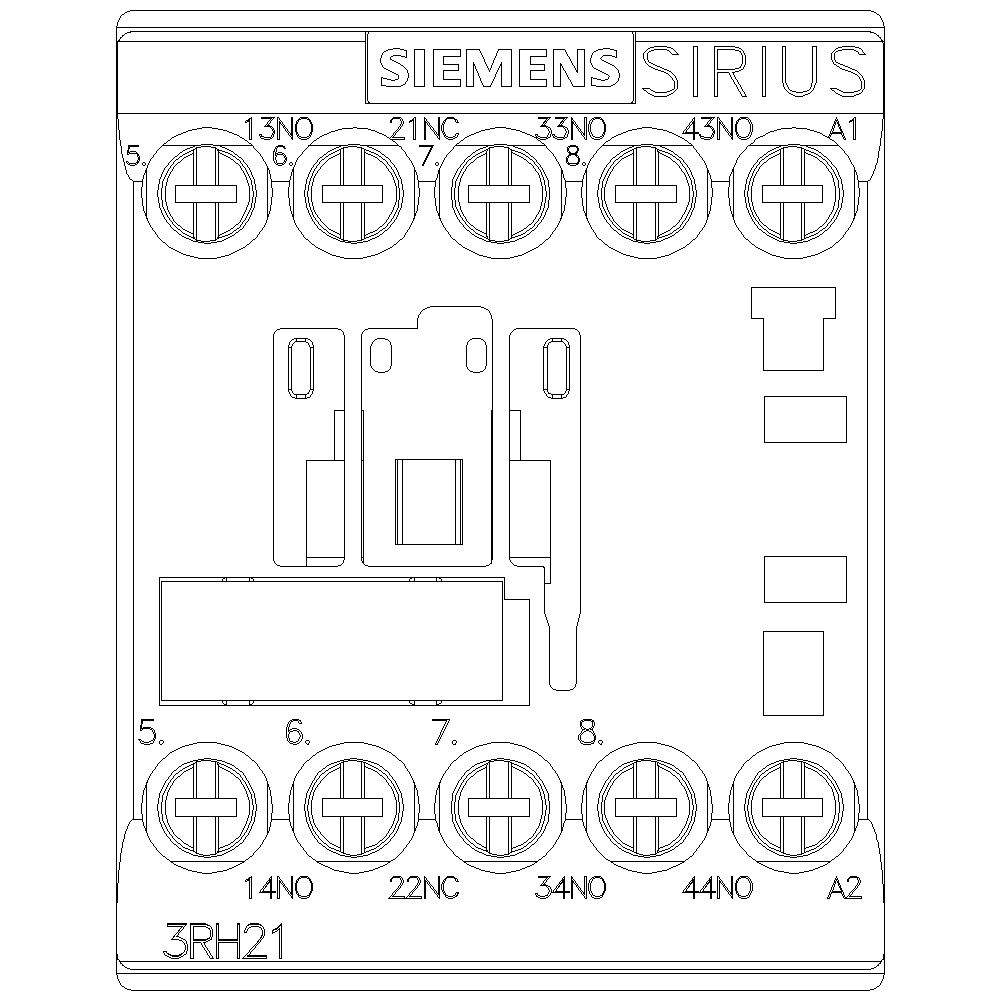

• Contact Configuration: 3 NO, 1 NC
• Coil Voltage: 120 VAC
• Amperage: 10 Amp
• Size: S00
• Terminal Type: screw terminal
• Approvals: UL, CSA, IEC, CE, CCC, EAC
• Current Rating: 10 A
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -25 °C
• Mounting Style: DIN Rail Mount
• Series: 3RH Series
• Special Features: Auxiliary Contacts
• Standards: RoHS Compliant, AL : N / ECCN : EAR99
• Supply Voltage: 120 VAC
• Temperature Operating Range: -25 to 60°C
• Termination: screw
• Voltage Rating: 110 V
• Function: IEC Contactor
• Must Operate Voltage: 93.5 VAC
• Operate Time: 33 ms
• Release Time: 15 ms
• Coil Power: 37VA
• Base Product Number: 3RH21311
