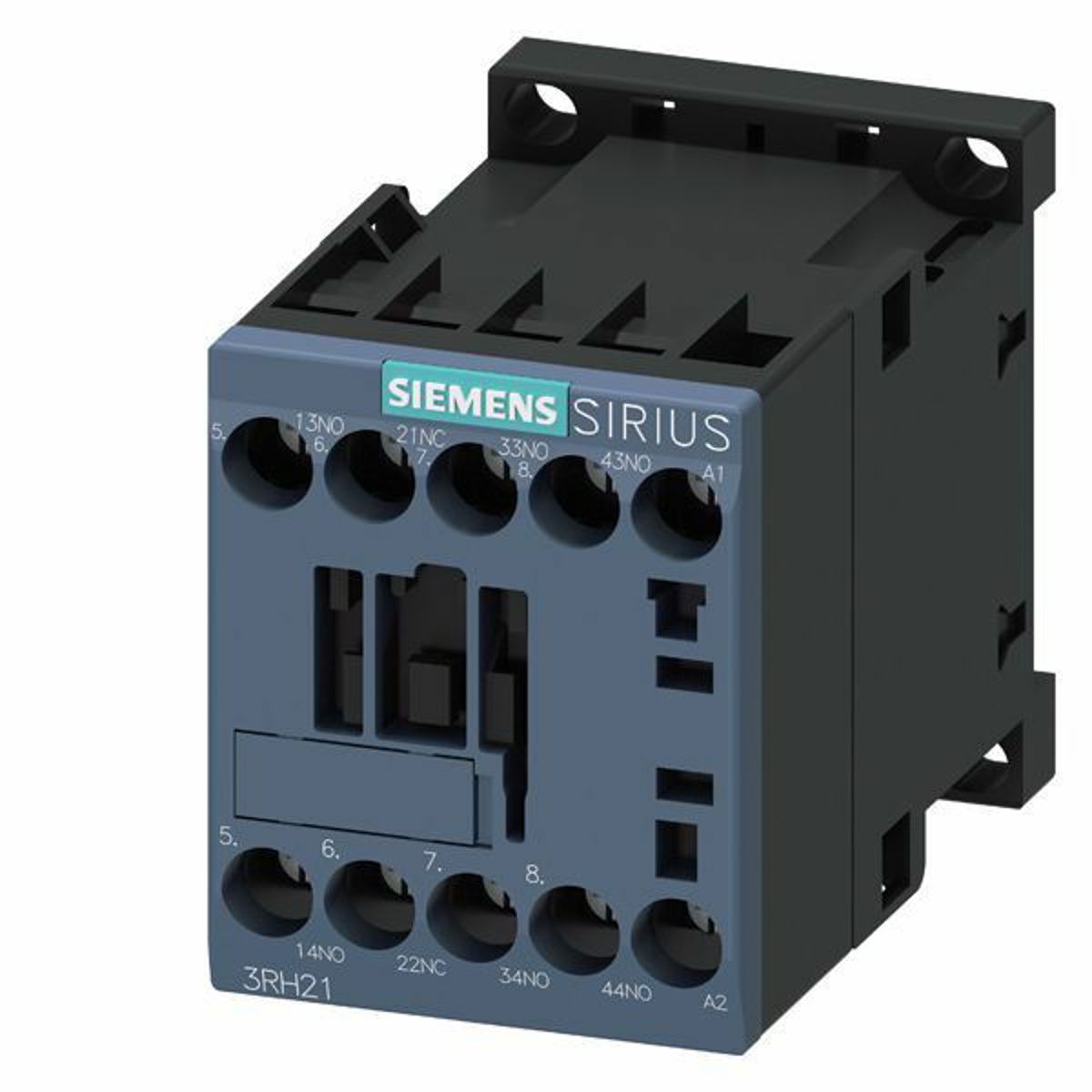

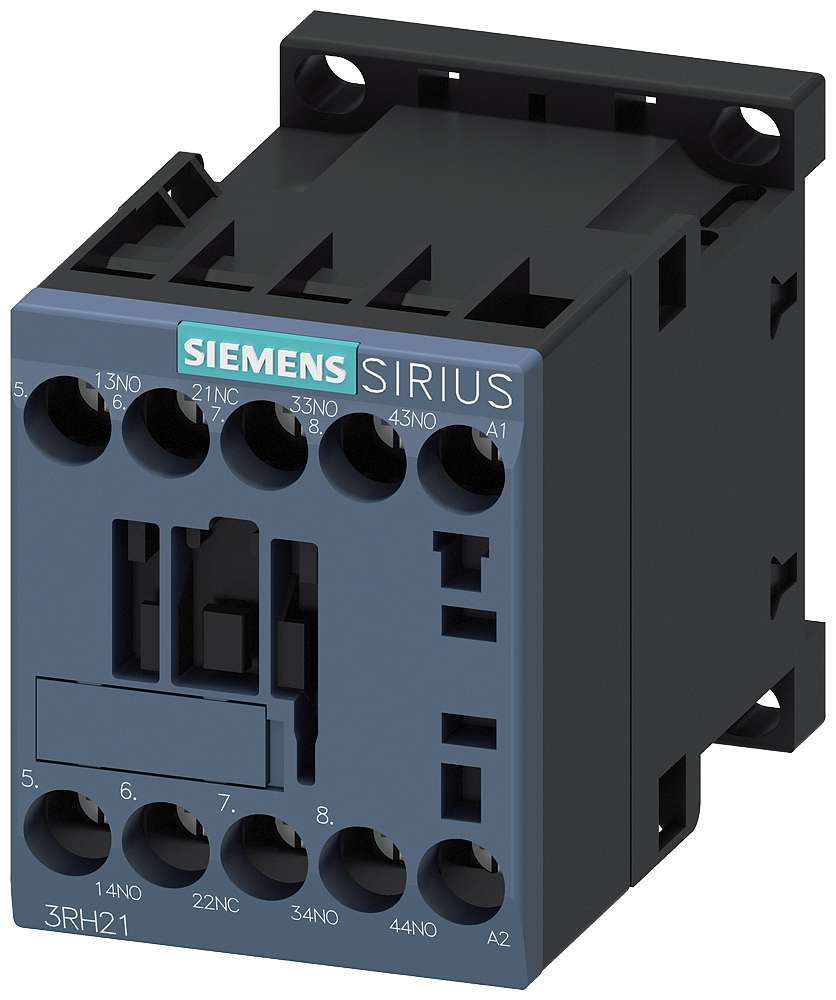

Siemens 3RH21311AB00 Contactor Relay 3NO+1NC AC 24V Size S00

Product Description

The Siemens 3RH21311AB00 is a contactor relay with 3 normally open (NO) and 1 normally closed (NC) contacts. It operates on AC 24V at 50/60 Hz and is size S00. This relay features screw terminals for connection and is suitable for DIN rail mounting. It is designed for use in installations subject to voltage variations and high ambient temperatures.

• 3NO+1NC contacts
• Operates on AC 24V at 50/60 Hz
• Screw-type terminals

Product Highlights

This Siemens contactor relay is ideal for applications requiring reliable control in demanding environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH21311AB00
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Contact Rating: A600,Q600
• Connection Type: Screw-Type Terminals
• Country of Origin: Germany
• Manufacturer: Siemens
• Model / MPN: 3RH2131-1AB00
• Part ID / MPN: 3RH21311AB00
• Size: S00 in
• Terminal Type: Screw Terminal
• Voltage: 24VAC, 50/60Hz
• Contact Configuration: 1 NC, 3 NO
• Control Voltage: 24 V
• Current Rating: 10 A
• Function: IEC Contactor
• Manufacturer Part Number: 3RH21311AB00
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -25 °C
• Mounting Style: DIN Rail Mount
• Number of Poles: 4
• Primary Type: IEC Contactor
• Series: 3RH Series
• Special Features: Auxiliary Contacts
• Standards: RoHS Compliant, AL : N / ECCN : EAR99
• Supply Voltage: 24 VAC
• Temperature Operating Range: -25 to 60°C °C
• Termination: screw
• Voltage Rating: 24 V
• Coil Voltage: 24V AC
• Power Consumption: 5.7 VA
• IP Rating: IP20
• Frame Size: S00
