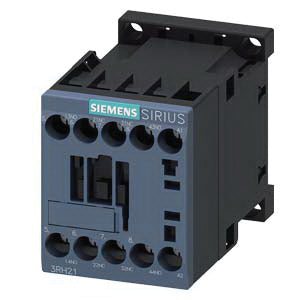

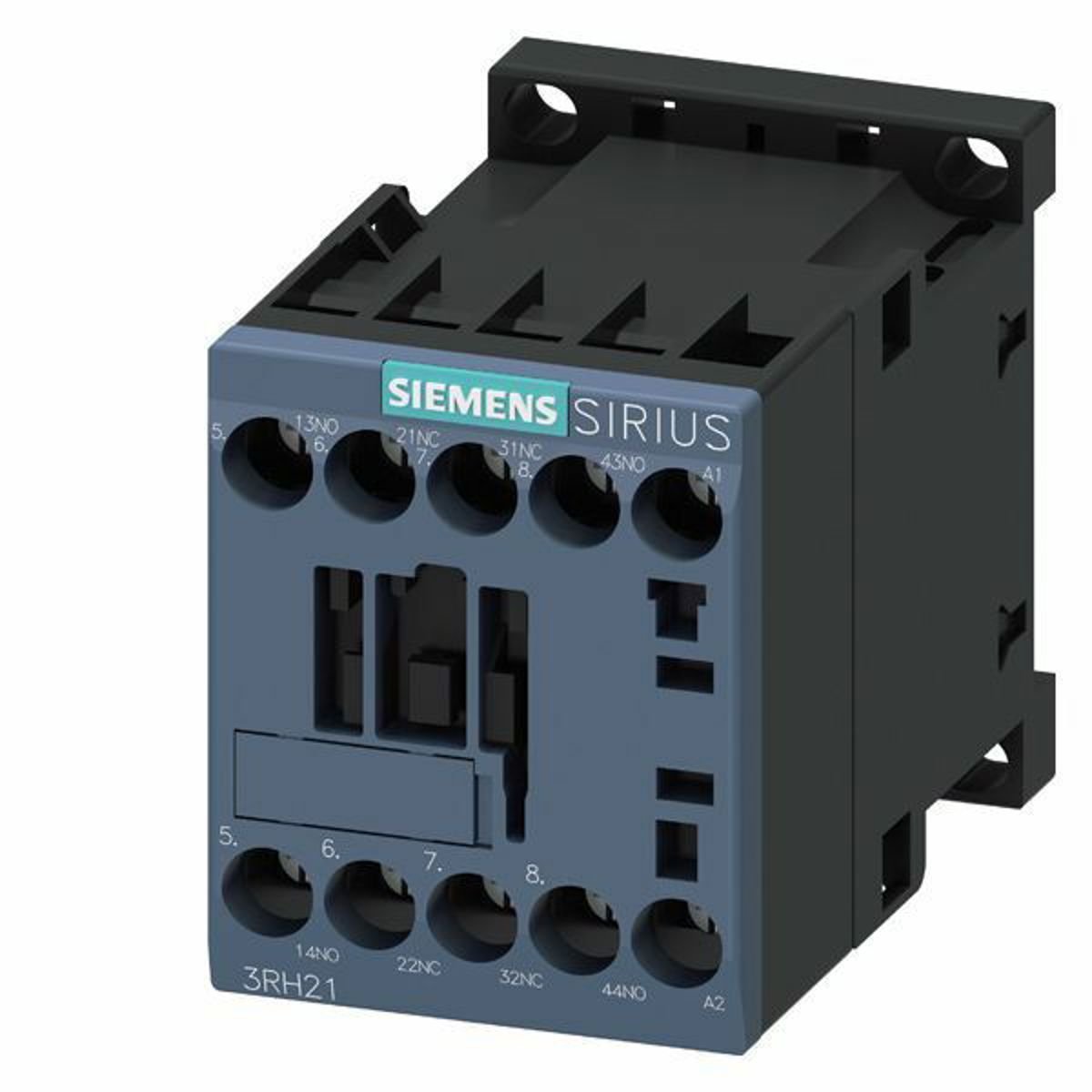

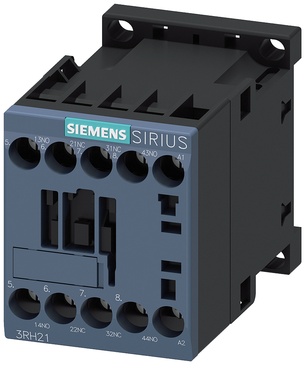

Siemens 3RH21221AM20 Contactor Relay, 2NO+2NC, AC208V 50/60HZ Size S00, Screw Terminal

Product Description

The SIEMENS 3RH21221AM20 is a contactor relay with 2 normally open (NO) and 2 normally closed (NC) contacts. It operates on AC208V at 50/60Hz, size S00, and features screw terminals. This standard relay has high contact stability at low voltages and currents and can be mounted via rail, snap-on, or threaded methods.

• Features 2NO and 2NC contacts
• Operates on AC208V at 50/60Hz
• Screw-type terminals

Product Highlights

The SIEMENS 3RH21221AM20 contactor relay is suitable for various industrial applications requiring reliable switching.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH21221AM20
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RH21221AM20
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• Made in USA: No
• UPC: 887621819125
• GTIN: 00887621819125
• Coil Voltage: 208 V AC
• Contact Form: 2NO-2NC 2 Form C
• Contact Rating: A600 / Q600
• Number of Poles: 4
• Temperature Rating (Degrees F): -25 to 55 deg C
• Type: Auxiliary contactor
• Mounting type: Rail/Snap-On/Threaded
• UNSPSC: 39121529
• Connection: screw-type terminals
• Contact Configuration: 2
• Mounting: screw and snap-on mounting onto 35 mm standard mounting rail
• Operating Temperature: -25 °C ... 60 °C
• Power Factor: 0.8
• Sub Brand: SIRIUS
• Weight: 0.50900 LB
