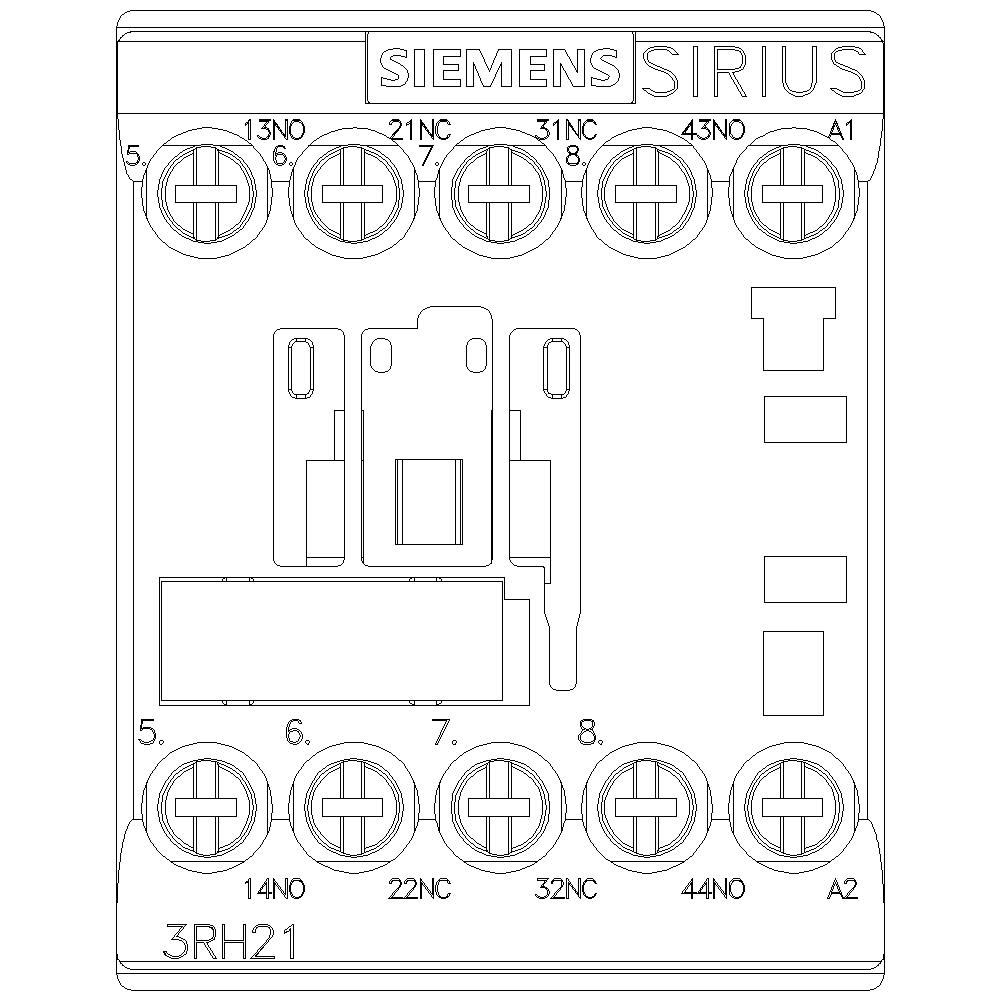

Siemens 3RH21221AK60 Contactor Relay 110-120 VAC 10 Amp 4 Pole

Product Description

The Siemens 3RH21221AK60 is a contactor relay designed for AC operation with a voltage rating of 110-120 VAC and a coil power of 5.7 VA. This model features 2 normally open (NO) and 2 normally closed (NC) contacts and is rated for 10 Amps. It operates in various applications, ensuring reliability in control circuits.

• 4-pole design for versatile connection configurations.
• Climate-resistant and suitable for global use.
• Replacement for the Siemens 3RH1 series with improved technology.

Product Highlights

This contactor relay is efficient and supports simultaneous switching of multiple auxiliary circuits. It includes a reliable time-saving connection technology.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RH21221AK60
• Voltage: 110-120 VAC
• Number of Poles: 4 Pole
• Power Rating: 5.7 VA
• Contact Rating: A600, Q600
• Operating Cycles: 30000000
• Temperature Rating: -25 to 60 degrees C Ambient
• Connection Type: Screw-Type Terminals
