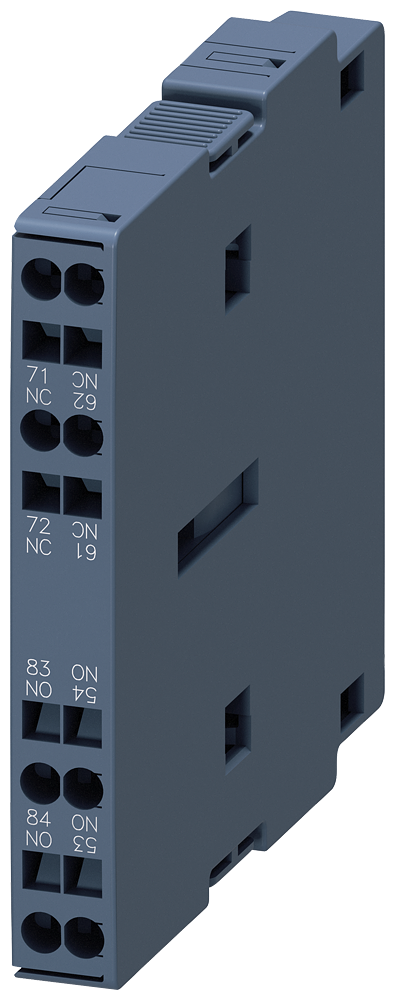

Siemens 3RH1921-2DE11 2-Pole 1NO 1NC Spring Loaded Terminal Contactor Auxiliary Switch Block

Product Description

The SIEMENS 3RH1921-2DE11 is a 2-pole, 1NO 1NC spring loaded terminal contactor auxiliary switch block. This electronic auxiliary switch is designed according to DIN EN 50012 standards and features a spring clamp connection. It is suitable for use with size S0 to S3 contactors and can be mounted laterally.

• 2-Pole
• 1NO 1NC
• Spring Loaded Terminal

Product Highlights

The SIEMENS 3RH1921-2DE11 auxiliary switch block is ideal for expanding the functionality of contactor systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH1921-2DE11
• Country of Origin: Czech Republic

Technical Specifications

• Connection Type: Spring Clamp Connection
• Width: 2.600 in
• Height: 3.4 Inch
• Length: 1 Inch
• Brand: Siemens
• Part Number #: 3RH1921-2DE11
• Amperage Rating: 1/3/10 A
• Suitable For Use With: 3RT1 Contactor Relay, Power Contactor, Size S0 to Size S3 Contactor
• Type: Auxiliary Contact,Solid State
• UNSPSC: 39121522
• Used On: SIRIUS 3RT Series Contactor, 3RH Series Relay
• Approval: UL, CSA, CE, CCC, EAC
• Terminal Type: Spring
• Contact Rating: 220 Volt DC, 10 Amp (DC-12), 0.3 Amp (DC-13)
• Mounting Location: Left/Right
• Contact Configuration: 1NO+1NC
