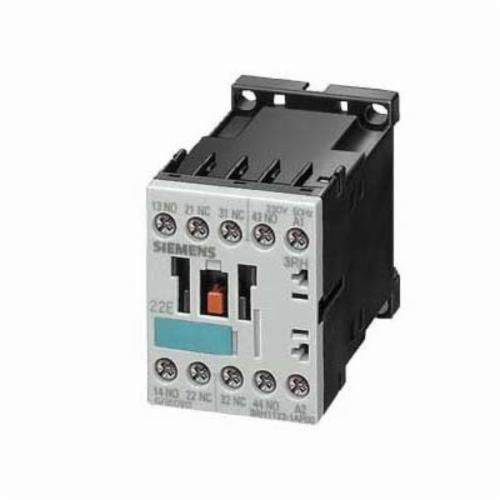

Siemens 3RH1131-1AK60 Contactor Relay 3NO 1NC 120 VAC 10 Amp

Product Description

The SIEMENS 3RH1131-1AK60 is a SIRIUS contactor relay with screw and snap-on mounting. This 120 VAC relay has a contact rating of 10 amps and a 3NO 1NC contact configuration. It is suitable for use in any climate and is finger-safe according to EN 50274.

• Snap-On mounting
• Temperature rating of -25 to 60 degrees C
• 3NO 1NC contact configuration

Product Highlights

The SIEMENS 3RH1131-1AK60 contactor relay is a reliable and versatile component for various control applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH1131-1AK60
• Country of Origin: DE

Technical Specifications

• Brand: Siemens
• Voltage: 110-120 VAC
• Sub Brand: Sirius
• Mounting Type: Snap-On
• Conductor Size: 20-16 AWG/18-14 AWG
• Contact Rating: 6/1 A at 230/690 VAC, 10/1 A at 24/220 VDC
• Operating Cycles: 30000000
• Temperature Rating: -25 to 60 degrees C Ambient
• Contact Configuration: 3 NO, 1 NC
• Frequency Rating: 50/60 Hz
• Catalog ID: SIE3RH11311AK60
• Coil Voltage: 110/120 VAC
• Contact Form: 3NO-1NC
• Enclosure Type: IP20
• Terminal Type: Threaded
• Type: Contactor
• Standard & Approvals: CCC Certified, CE Marked, CSA Certified, EAC Rated, EN 60947 Rated, IEC 60947, UL Listed
• Catalog Number: 3RH1131-1AK60
• Country of Origin: DE
• EU RoHS Indicator: C
• Standards: CCC Certified, CE Marked, CSA Certified, EAC Rated, EN 60947 Rated, IEC 60947, RoHS Compliant, UL Listed
