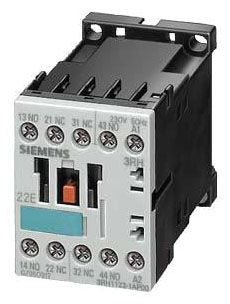

Siemens 3RH1122-1AV60 Control Relay

Product Description

The SIEMENS 3RH1122-1AV60 is a control relay designed for use in industrial control circuits and auxiliary switching applications. This relay provides reliable contact switching to manage load or signal circuits within control panels, motor starters, and automation systems. Weighing 0.443 pounds and measuring 2.5 x 1.969 x 3.031 inches, it is compact enough for panel installations where space is a consideration. Licensed electricians and industrial control technicians are the primary installers of this device in both new construction and retrofit applications.

The 3RH1122-1AV60 is suited for use in industrial and commercial control panel environments. Typical applications include auxiliary contact expansion for motor starters, interlocking control circuits, and signal switching in automation or machine control systems. It is commonly installed in DIN-rail-mounted enclosures alongside contactors and other control devices in manufacturing and mechanical equipment rooms.

Key Features

• Compact form factor at 2.5 x 1.969 x 3.031 inches for space-efficient panel mounting
• Lightweight construction at 0.443 pounds for easy handling and installation
• Designed for auxiliary and control circuit switching in industrial applications
• Compatible with standard industrial control panel configurations and DIN-rail mounting systems

Compatibility

Designed as an OEM-style control relay for use in industrial control panel and motor starter auxiliary circuit applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the manufacturer wiring diagrams. De-energize and lock out the control panel before removing or installing the relay. Verify coil voltage and contact ratings match the circuit requirements before energizing. Do not exceed the rated contact load for the relay.

Technical Specifications

• Dimensions (L x W x H): 2.5 x 1.969 x 3.031 inches
• Weight: 0.443 pounds
• UPC: 75455448214

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH1122-1AV60
