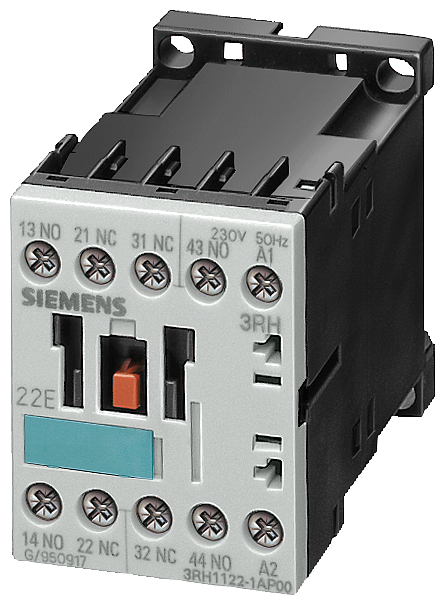

Siemens 3RH1122-1AP60 Contactor Relay 690 VAC/220 VDC 240 VAC 10 Amp 2NO 2NC

Product Description

The SIEMENS 3RH1122-1AP60 is an IEC, SIRIUS electrically held control relay with a 240 VAC 60 HZ coil. This S00 frame size relay features 2 NO and 2 NC contacts with screw terminals and A600/Q600 contact ratings. It is suitable for various control applications requiring reliable switching. UL File E44653 in Vol.2 Sec.57.

• IEC, SIRIUS electrically held control relay
• 240 VAC 60 HZ coil
• 2 NO and 2 NC contacts with screw terminals

Product Highlights

The SIEMENS 3RH1122-1AP60 is a reliable control relay for diverse industrial applications, ensuring efficient and safe operation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH1122-1AP60
• Country of Origin: Germany

Technical Specifications

• Connection Type: Screw Connection
• Brand: Siemens
• Width: 2.000 in
• Height: 2.35 Inch
• Length: 2.65 Inch
• Article Number (Market Facing Number): 3RH1122-1AP60
• Commodity Code: 85364900
• Group Code: R711
• LKZ_FDB/ CatalogID: CC-IC10
• Product family: Not available
• Product Group: 3700
