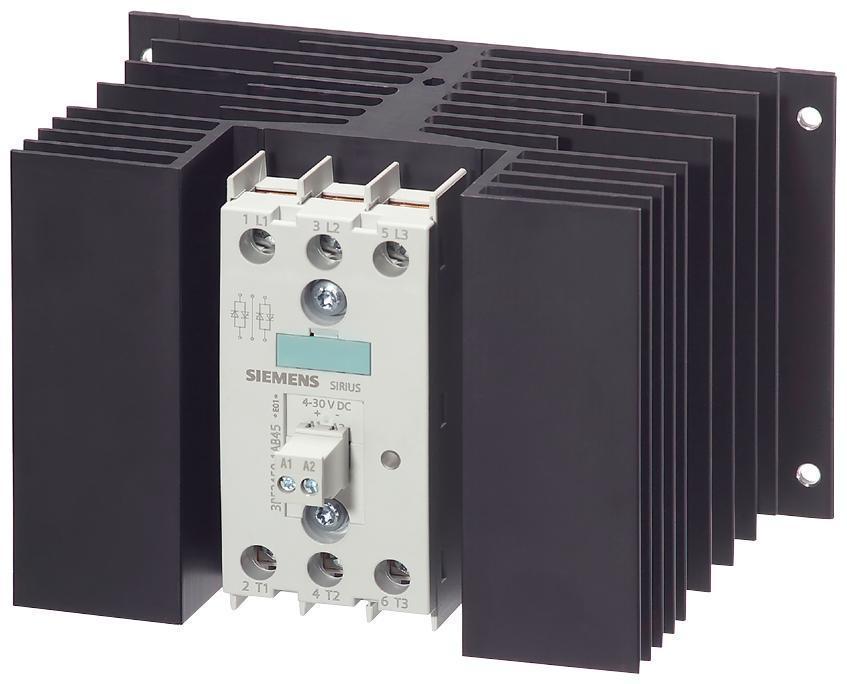

Siemens 3RF2450-1AB45 SS CONT,50A,48-600V,3P,4-30VDC,ZP,SCREW

Product Description

The Siemens 3RF2450-1AB45 is a 3-phase solid-state contactor from the SIRIUS 3RF2 series. It features zero point switching and is suitable for AC-51 applications with a rated current of 50A at 40°C. This contactor operates within a 48 to 600 V AC voltage range and a 4 to 30 V DC control voltage range.

• Zero point switching
• Screw terminal connections
• IP20 enclosure

Product Highlights

Solid-state contactor with 50A current rating, 48-600V voltage range, and zero point switching.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF2450-1AB45

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Current Rating: 50 A
• Manufacturer Part Number: 3RF2450-1AB45
• Primary Type: Power Relays
• Series: 3RF Series
• UPC Code: 040892554106
• Coil Voltage: 48 to 600 V AC, 4 to 30 V DC
• Type: 3-Phase Zero Point Switching
• UNSPSC: 39121529
• Main function: Solid State Relay (SSR)
• Product series / family name: SIRIUS 3RF2
• Sub-range name: 3RF2450
• Functions: Solid-state / static contactor / relay (SSR)
• Rated current: 50A (AC-51; 40 00b0C)
• Rated insulation voltage (Ui): 600 V
• Connection type: Screw-clamp term. connections
• Poles: 2 Pole(s)
• Control Voltage (DC): 4-30Vdc (5Vdc / 6Vdc / 12Vdc / 24Vdc nom)
• Mounting mode: Surface
• Degree of protection: IP20
• Order code / Manufacturer SKU: 3RF24501AB45
• Manufacturer product status: Commercialized
• Rated voltage (AC): 48-600 V
• Compliant with standard(s): IEC 60947-4-3 CE EAC CSA RCM UL IEC 60068-2-6 IEC 60068-2-27 DIN EN 61346-2 DIN 40719
