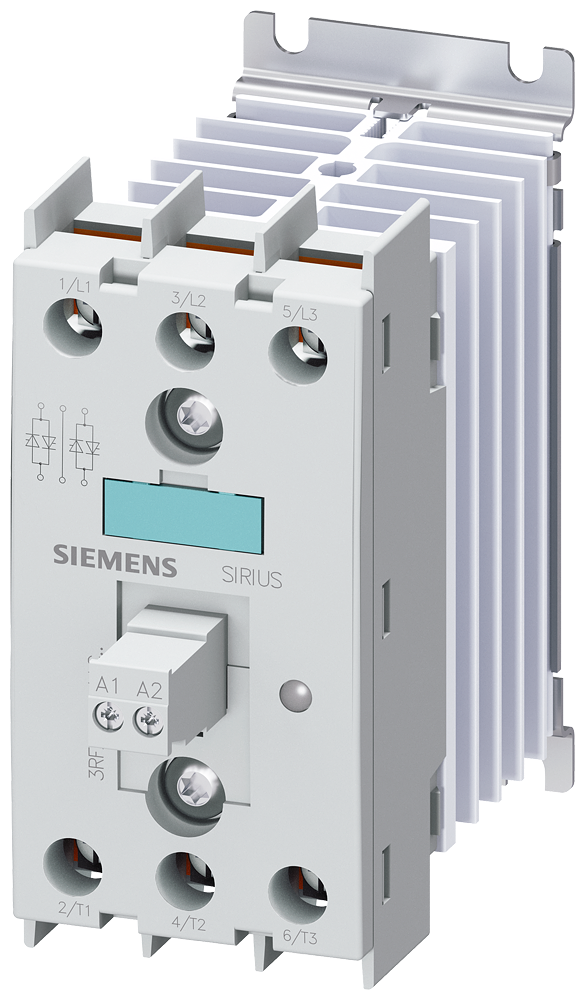

Siemens 3RF2410-1AB45 Solid-state Contactor 10 A (2.09 x 4.57 x 4.93 in)

Product Description

Siemens 3RF2410-1AB45 is a three-phase solid-state contactor rated for 10 A, intended for industrial motor control and automation. It supports AC load voltages from 48 to 600 V and accepts a DC control input of 4 to 30 V DC, with a blocking voltage of 1200 V. The unit uses screw-type terminals, has compact panel-mount dimensions, and features an IP20 enclosure and a 50/60 Hz rating.

• Three-phase solid-state contactor, rated current 10 A; contact rating 48 to 600 VAC, frequency 50/60 Hz
• DC control input 4 to 30 V DC; blocking voltage 1200 V; 3 poles
• Screw-type terminals, compact panel-mount dimensions (2.09 x 4.57 x 4.93 in), IP20 enclosure, operating temperature -25 to 60 C

Product Highlights

3-phase solid-state contactor, 10 A, 48-600 VAC load range, 4-30 V DC control input, screw terminals, IP20, compact panel-mount form factor

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF2410-1AB45
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 3RF2410-1AB45
• Brand: Siemens
• Series: 3RF
• Product ID: 1163340
• Catalog Number: 3RF2410-1AB45
• Type: Three-phase solid-state contactor
• Number of Phases: 3 Phase
• Number of Poles: 3
• Rated Current: 10 A
• Contact Rating (VAC): 48 to 600 V
• Frequency Rating: 50/60 Hz
• Control Voltage (DC): 4 to 30 V DC
• Blocking Voltage: 1200 V
• Termination/Connection Type: Screw-type terminals
• Enclosure Rating: IP20
• Mounting Type: Panel mount
• Dimensions: Width 2.09 in x Length 4.57 in x Height 4.93 in
• Dimensions (mm): Approximately 53 mm x 116 mm x 125 mm
• Weight: 1.200 lb
• Operating Temperature: -25 to 60 C
• Country of Origin: Germany
