Siemens 3RF2330-1AA45 SSC, 30A, 48-600V, Z

Product Description

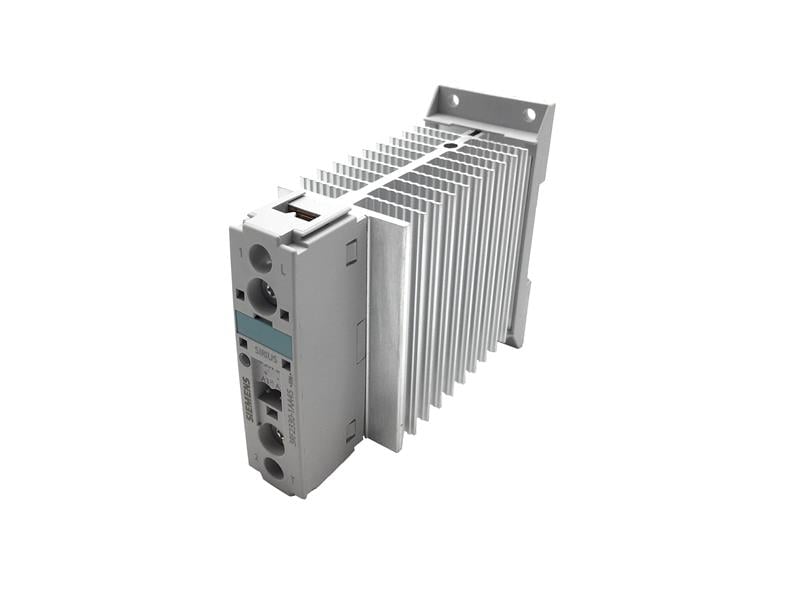

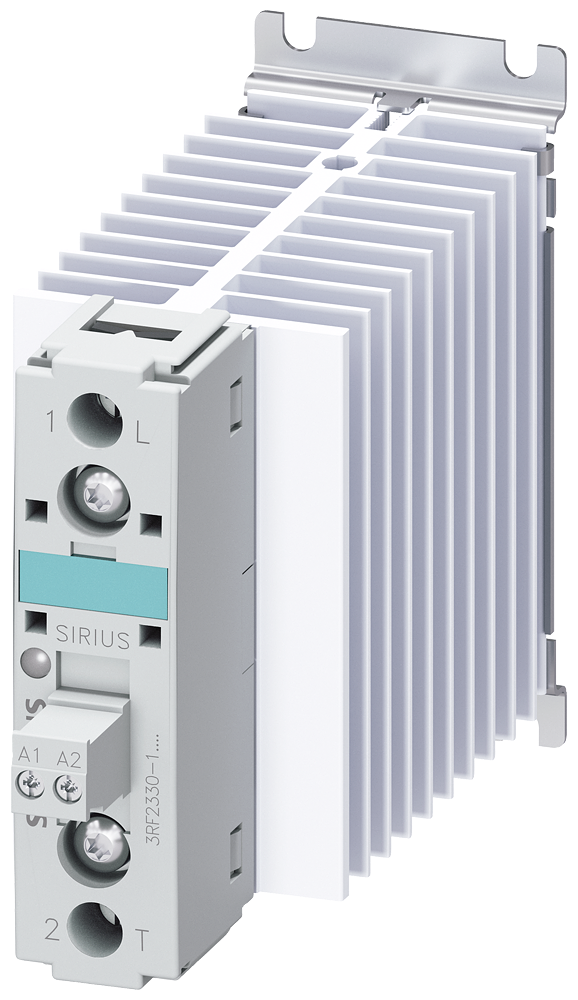

The Siemens 3RF2330-1AA45 is a solid state contactor with a 30A load current and a blocking voltage of 1200V. It is designed for 48-600V AC51 voltage and 4-30V DC input. This contactor features screw-type terminals and is suitable for DIN rail mounting. It is a 1-Phase zero point switching contactor.

• Solid State Contactor with SPST-NO (1 Form A) configuration
• Designed for DIN Rail Mounting with Screw Terminal Termination
• Compact design with insulated enclosure and integrated heat sink

Product Highlights

The Siemens 3RF2330-1AA45 solid state contactor is ideal for various applications requiring reliable switching. It offers a compact design and easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF2330-1AA45
• Country of Origin: Germany

Technical Specifications

• Connection Type: Screw-Type Terminals
• Number of Phases: 1 Phase
• Width: 2.090 in
• Height: 6.62 Inch
• Length: 4.18 Inch
• Manufacturer: Siemens
• Series: SIRIUS
• Part Status: Active
• Mounting Type: DIN Rail
• Circuit: SPST-NO (1 Form A)
• Output Type: AC, Zero Cross
• Load Current: 30 A
• Voltage - Input: 4 ~ 30VDC
• Voltage - Load: 48 ~ 600V
• Termination Style: Screw Terminal
• Coil Voltage: 4 to 30
• Contact Configuration: 1NO
• Enclosure Type: IP20
• Frequency Rating: 50/60
• Maximum Load Current: 30
• Number of Poles: 1
• Operating Temperature: -25 to 60
• Terminal Type: Screw
• Type: 1-Phase Zero Point Switching
• Rated Voltage: 600V AC
• Rated Current: 30A
• Poles: 1P
• Operating Voltage Min/​Max: 48-600VAC
• Coil Voltage Min/​Max: 4-30VDC
• Temperature: -25 Deg C - +60 Deg C
• Auxiliary Contacts: 1 NO
