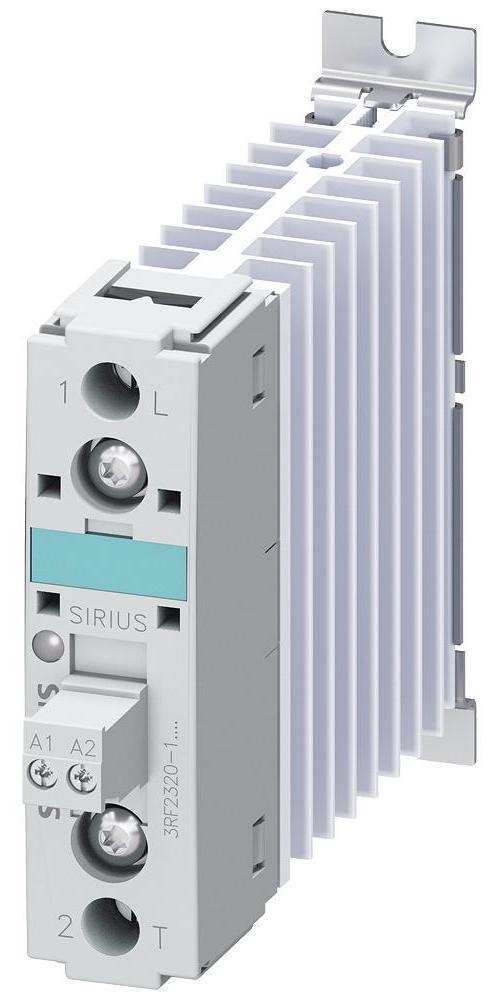

Siemens 3RF2320-1AA45 SS Contactor, 20A

Product Description

The Siemens 3RF2320-1AA45 is a solid state contactor with a 20A current rating. It features a blocking voltage of 1200V and screw connections. Designed for AC51 applications, it operates within a 4 to 30 VDC control voltage range. Suitable for various industrial applications requiring reliable switching.

• Screw-type terminals for secure connections
• Suitable for 200-600V AC voltage range
• DIN Rail mounting for easy installation

Product Highlights

This Siemens solid state contactor provides reliable switching for industrial applications with its robust design and versatile voltage compatibility.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF2320-1AA45
• Country of Origin: Germany

Technical Specifications

• Connection Type: Screw-Type Terminals
• Number of Phases: 1 Phase
• Brand: Siemens
• Manufacturer Part Number: 3RF2320-1AA45
• Manufacturer: SIEMENS
• Mounting Type: DIN Rail Mount
• Series: 3RF Series
• Voltage Rating: 660 V
• Primary Type: Solid State Relays
• Relay Type: Solid State
• Alternate Mfr Part Number: 3RF2320-1AA45
• Function: Zero-Switching
• Termination: Screw terminal
• Contact Form: SPST-NO
• Current Rating: 20 A
• Control Voltage: 4...30V DC
• Approval: UL, CSA, EAC, CE, C-TICK
• Number Of Poles: 1
• Mounting: 35 Millimeter Standard Rail, Screw/Snap-On
• Auxiliary Contact: 1NO
• Enclosure: IP20
• Power Rating/Voltage: 4.6 Kilowatt at 230 Volt, 8 Kilowatt at 400 Volt, 48 to 600 Volt AC
• Construction Standard: IEC
• Type: Reversing
• Operating Temperature: -25...60°C
• Switched voltage: 48...600V AC
• Manufacturer series: 3RF23
• Relay variant: 1-phase
• Switching method: zero voltage switching
• Leads: screw terminals
• Design: heatsink
