Siemens 3RF2310-1AA45 Ssc 10A 48-600V Zero Scrw 4-30Vdc Coil

Product Description

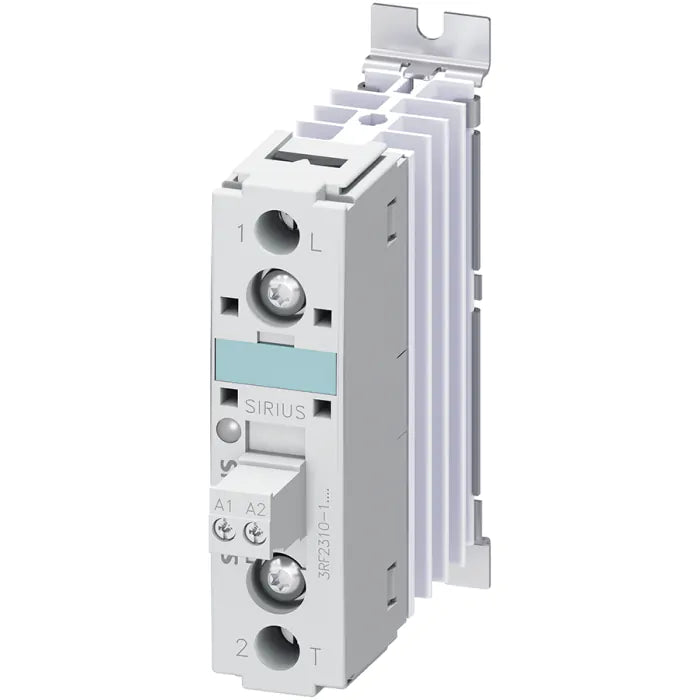

The SIEMENS 3RF2310-1AA45 is a solid-state contactor with a 4-30VDC coil and a voltage rating of 48-600V. It features a screw-type terminal and a blocking voltage of 1200V. This 1-phase contactor is rated for 10.5A at 40°C, suitable for AC51 applications. It is designed for DIN rail or panel mounting.

• Control voltage: 4-30 VDC
• Current rating: 10 A
• Voltage rating: 48-600 V
• Mounting Type: DIN Rail/Panel Mount

Product Highlights

The SIEMENS 3RF2310-1AA45 is a reliable solid-state contactor for various industrial applications, offering efficient switching and easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF2310-1AA45
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Alternate Mfr Part Number: 3RF2310-1AA45
• Brand: SIEMENS
• Control Voltage: 4-30 VDC
• Current Rating: 10 A
• Manufacturer Part Number: 3RF2310-1AA45
• Mounting Type: DIN Rail/Panel Mount
• Primary Type: Power Relays
• Relay Type: Electromechanical
• Series: 3RF Series
• Termination: Screw terminal
• Unit of Measure: EA
• UPC Code: 754554925875
• Voltage Rating: 48-600 V
• Type of relay: solid state
• Max. operating current: 10A
• Switched voltage: 48...600V AC
• Manufacturer series: 3RF23
• Relay variant: 1-phase
• Mounting: for DIN rail mounting
• Body dimensions: 22.5x100x86mm
• Switching method: zero voltage switching
• Leads: screw terminals
• Design: heatsink
• Operating temperature: -25...60°C
• Condition: New – Open box
• Country of Origin: Germany
• Category: Business & IndustrialElectrical Equipment & SuppliesCircuit Breakers & DisconnectorsCircuit Breakers
• Primary brand: Siemens
• Main function: Solid State Relay (SSR)
• Product series / family name: SIRIUS 3RF2
• Sub-range name: 3RF2310
• Functions: Solid-state / static contactor / relay (SSR)
• Type of network: Single-phase
• Rated current: 10.5A (AC-51; 40°C)
• Rated insulation voltage (Ui): 600 V
• Connection type: Screw-clamp term. connections
• Poles: 1 Pole(s)
• Control Voltage (DC): 4Vdc-30Vdc (24Vdc nom)
• Mounting mode: DIN rail
• Surface: Surface
• Degree of protection: IP20
• Order code / Manufacturer SKU: 3RF23101AA45
• Manufacturer product status: Commercialized
• Rated voltage (AC): 48-600 V
• Compliant with standard(s): IEC 60947-4-3 CE EAC CSA RCM UL IEC 60068-2-6 IEC 60068-2-27 DIN EN 61346-2 DIN 40719
