Siemens 3RF21301AA42 Ss Relay, 22.5mm, 30a, 600v, 230vac, Scrw

Product Description

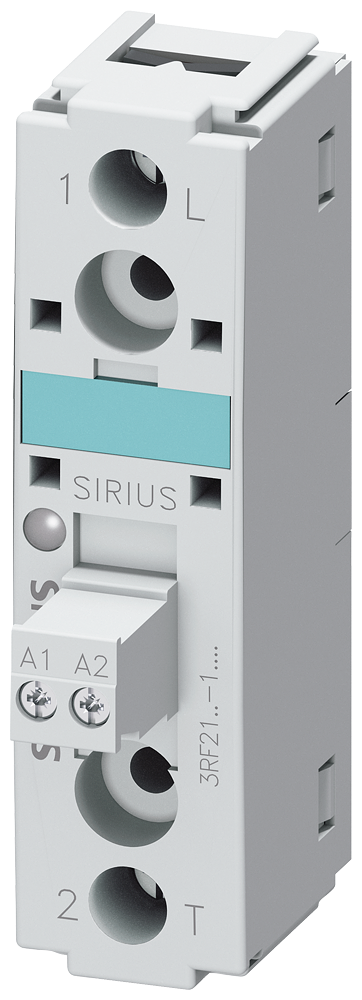

The SIEMENS 3RF21301AA42 is a semiconductor relay with a 1-phase design and a width of 22.5 mm. It features a rated operational current of 30A at AC-1 and AC-51, and is designed for screw terminal connections. This solid state relay is suitable for various industrial applications requiring reliable switching.

• 22.5 mm width
• Rated operational current of 30A at AC-1 and AC-51
• Screw terminal connections

Product Highlights

The SIEMENS 3RF21301AA42 is a compact and efficient solid state relay designed for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF21301AA42
• Country of Origin: Germany

Technical Specifications

• Degree of protection (IP): IP20
• Depth: 48 mm
• Height: 85 mm
• Modular version: true
• Number of phases: 1
• Rated operation current Ie at AC-1: 30 A
• Rated operation current Ie at AC-51: 30 A
• Type of electric connection: Screw connection
• Type of switch function: Normally open contact (NO)
• Voltage type (operating voltage): AC
• Voltage type for actuating: DC
• Width: 22.5 mm
• With detachable clamps: true
