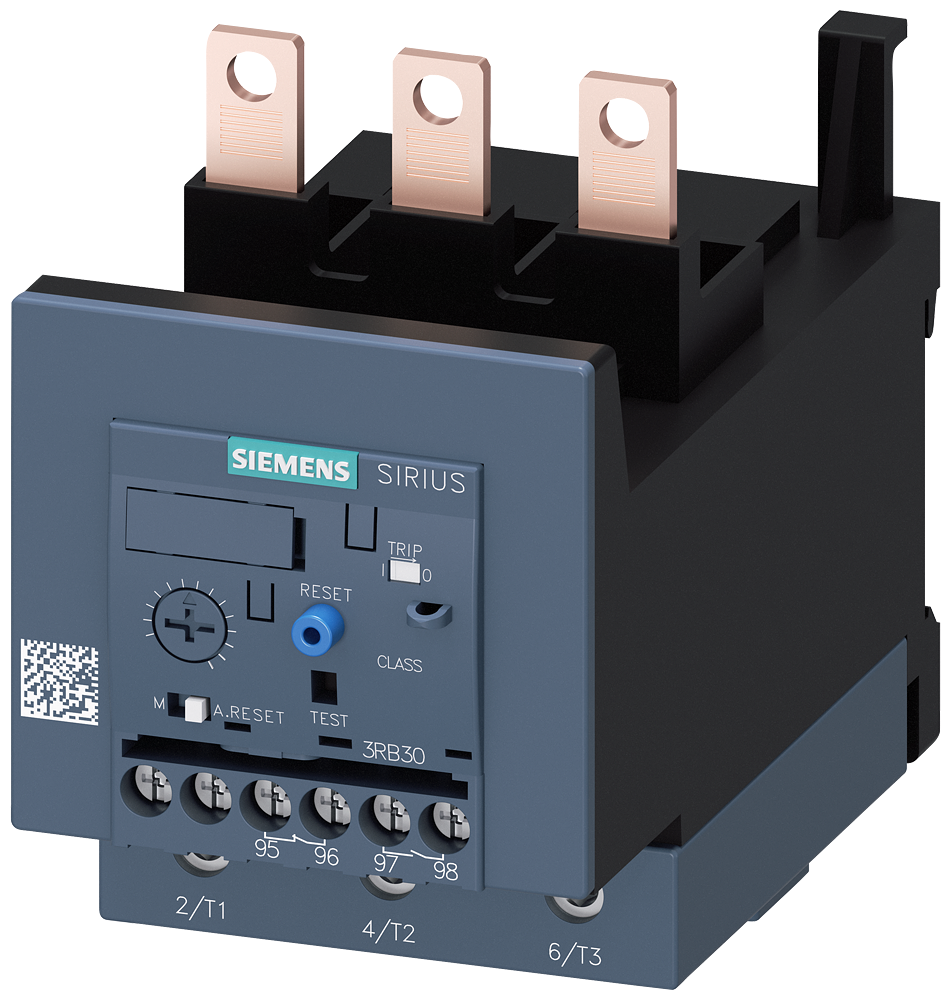

Siemens 3RB30462XB0 ELECTRONIC OVERLOAD 32 to 115 A

Product Description

The Siemens 3RB30462XB0 is an electronic overload relay designed for motor protection, suitable for applications requiring a range of thirty-two to one hundred fifteen amperes. This relay conforms to class twenty E and mounts easily onto contactors with both main and auxiliary circuit terminals featuring screw connections.

• Amperage range: thirty-two to one hundred fifteen A
• Class twenty E performance for reliable motor protection
• Manual and automatic reset functionality available

Product Highlights

This device forms part of the control and automation category, specifically designed for relay and timer functions, and is optimal for overload protection in motor applications.

Product Information

Standard Information

• Brand: Siemens
• Product ID: 1389709

Technical Specifications

• Amperage Rating: 32 to 115 A
• Application: For size S3 motor protection
• Contact Form: 1NO-1NC
• Contact Rating: 100 VAC, 115 A
• Country of Origin: Czech Republic
• Dimensions: 106 mm H x 70 mm W x 124 mm D
• Enclosure Type: IP00/IP20
• Frequency Rating: 50/60 Hz
• Mfg Standards/Approvals: CSA Certified, CCC Certified, UL Listed, CE Certified
• Number of Poles: 3
• Package Weight: 0.497 lb
• Power Rating: 18.5 to 55 kW / 22 to 75 kW / 30 to 90 kW
• Temperature Rating: -25 to 60 deg C
• Terminal Type: Screw
• Type: Class 20E Solid State Trip
