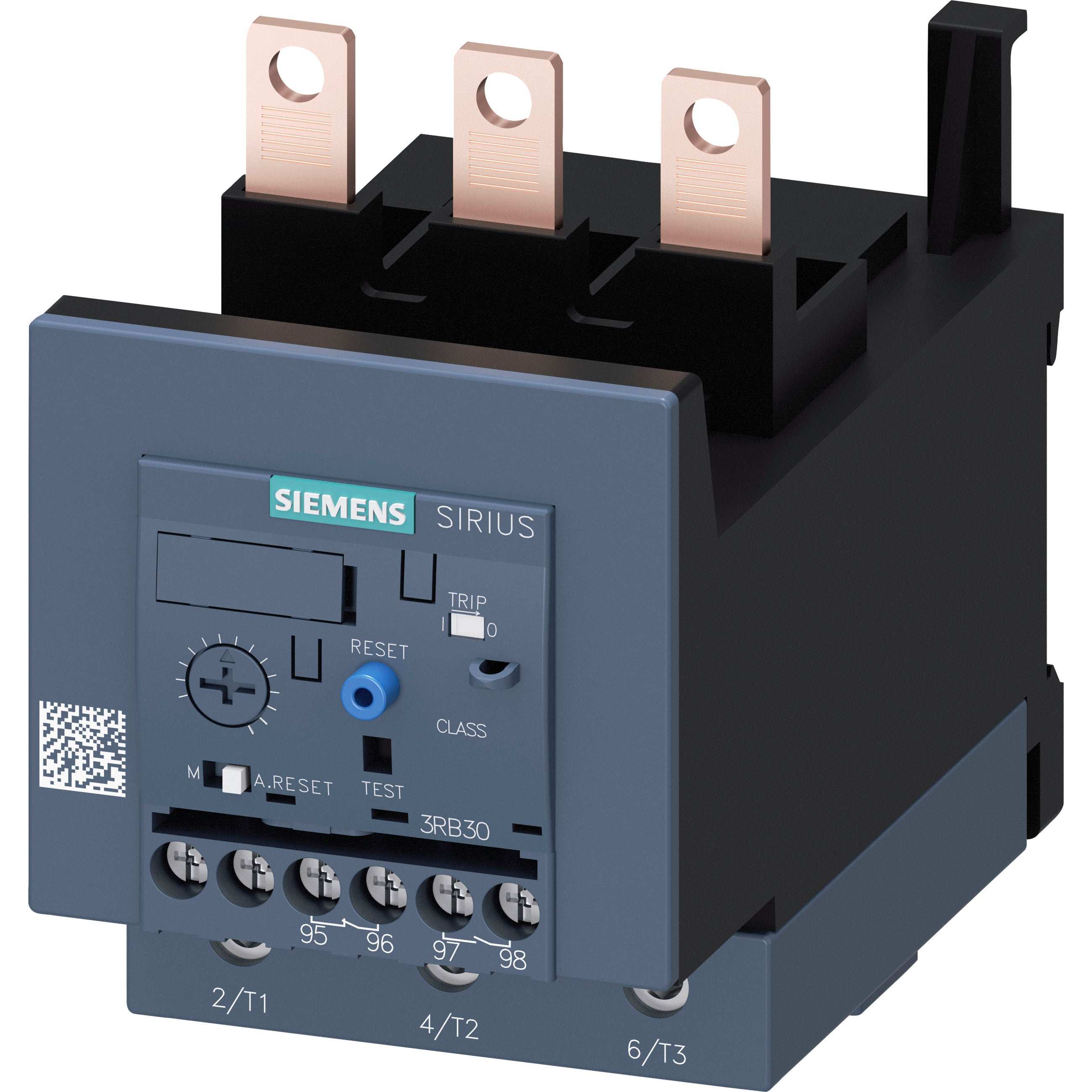

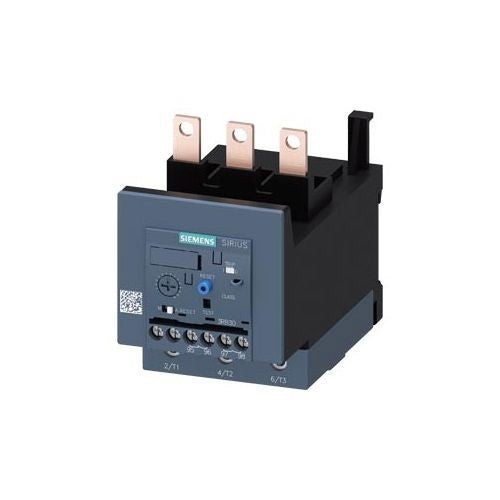

Siemens 3RB30461XB0 Electronic overload relay 32-115 A (Size S3) 3RB3046-1XB0

Product Description

Siemens 3RB30461XB0 is an electronic overload relay from the SIRIUS 3RB3 series that provides adjustable motor protection for three-phase motors with a current range of 32 to 115 A. It uses Class 10E solid-state trip characteristics with selectable automatic or manual reset and ambient temperature compensation. The device includes one normally open and one normally closed auxiliary contact, screw terminal connections, IP00/IP20 enclosure options, and dimensions of 106 x 70 x 124 mm.

• Adjustable motor current range: 32 to 115 A with Class 10E solid-state trip
• Three-pole protection for three-phase motors with 1 NO and 1 NC auxiliary contact and screw terminals
• Selectable automatic or manual reset, ambient temperature compensated, enclosure options IP00/IP20

Product Highlights

Adjustable 32�115 A motor protection, Class 10E solid-state trip, size S3 mounting

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RB30461XB0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3RB30461XB0
• Alternate Part Number: 3RB3046-1XB0
• Product Description: Electronic overload relay
• Series: 3RB3
• Trade name: SIRIUS
• Current Range: 32 to 115 A
• Number of Poles: 3
• Trip Class: Class 10E
• Frame Size: S3
• Mounting Type: Panel mount
• Auxiliary Contact: 1 NO, 1 NC
• Terminal Type: Screw
• Enclosure Rating: IP00/IP20
• Dimensions: 106 mm x 70 mm x 124 mm (H x W x D)
• Operating Temperature: -25 to 60 �C
• Power Rating: 18.5 to 55 kW (400 V, 50 Hz); 22 to 75 kW (500 V, 50 Hz); 30 to 90 kW (690 V, 50 Hz)
• Frequency Rating: 50/60 Hz
• Certifications: CSA, CCC, UL, CE, EAC, ATEX, C-Tick
• Country of Origin: Czech Republic
• Reset Type: Automatic/Manual
• Product Category: Overload Relays
• Mouser Part Number: 982-3RB30461XB0
• EAN: 4047621011950
• UPC: 804766407833
