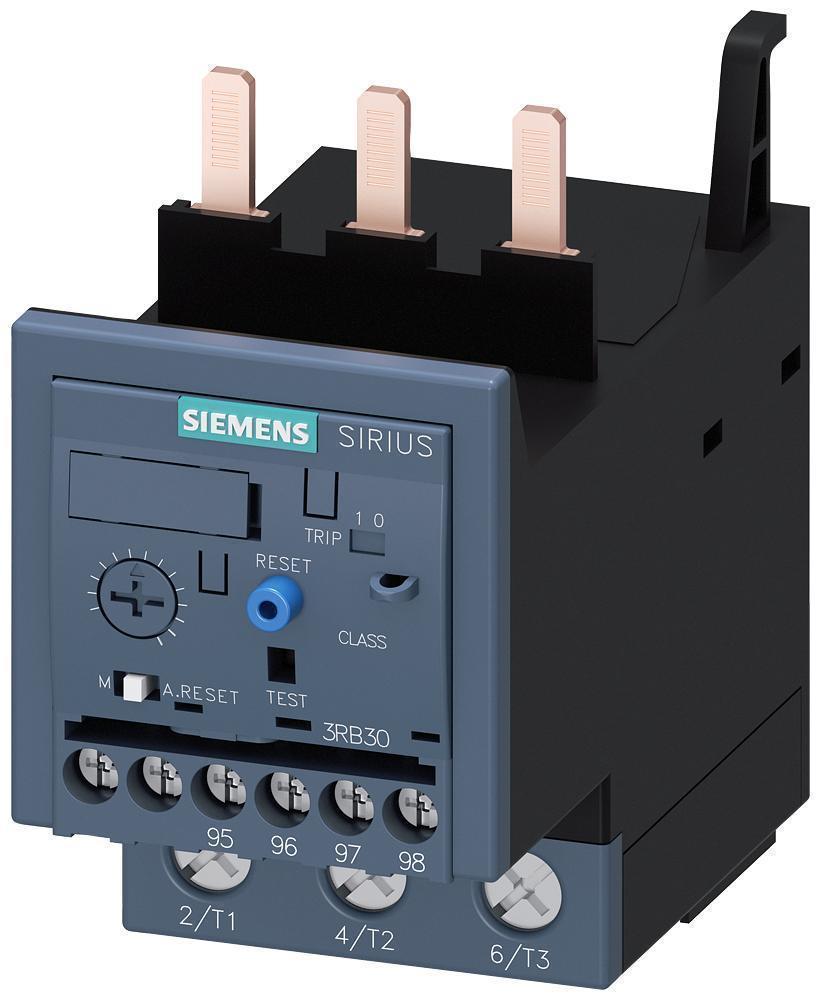

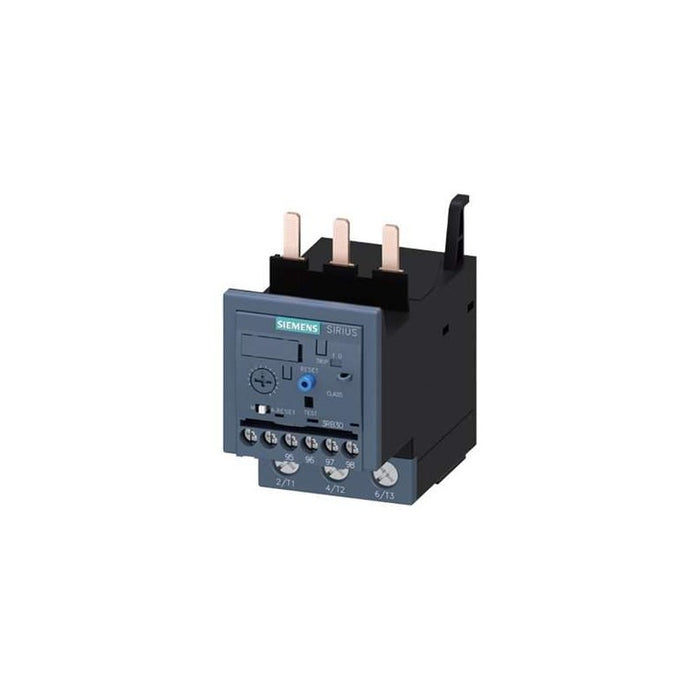

Siemens 3RB30362UB0 Sirius Relay, Solid State/Trip Class 20E; 3 Pole; 50 FLA

Product Description

The SIEMENS 3RB30362UB0 solid-state overload relay up to 40A with internal power supply protects loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance, or phase failure. It detects current increases via integrated current transformers and switches off the load using auxiliary contacts. The break time depends on the ratio between the tripping current and current setting Ie.

• Overload protection, phase failure protection and unbalance protection
• Internal power supply
• Manual and automatic reset

Product Highlights

The SIEMENS 3RB30362UB0 overload relay provides reliable motor protection with features like manual/automatic reset and a switch position indicator.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RB30362UB0
• Country of Origin: Czech Republic

Technical Specifications

• Type: Solid State, Trip Class 20E
• Mounting: Contactors
• Size, IEC: S2
• Reset: Manual/Automatic
• Ambient Temperature: Compensated
• Poles: 3P
• Motor FLA: 50A
• Auxiliary Contacts: 1NO 1NC
• Rating, Contacts: 3A/230VAC, 0.11A/220VDC
• Enclosure: IP20, IP00
• Brand: SIEMENS
• Manufacturer Part Number: 3RB30362UB0
• Model: 3RB30362UB0
• Country of Origin: Czech Republic - Subject to change
• Application: For motor protection
• Standards: CCC|CE Certified|CSA Certified|EAC Rated|UL Listed
• Product family: SIRIUS 3RB electronic overload relays
