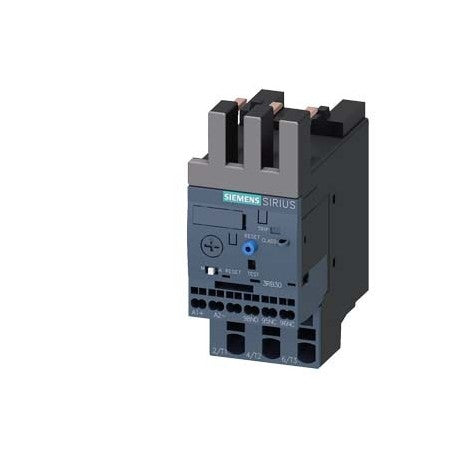

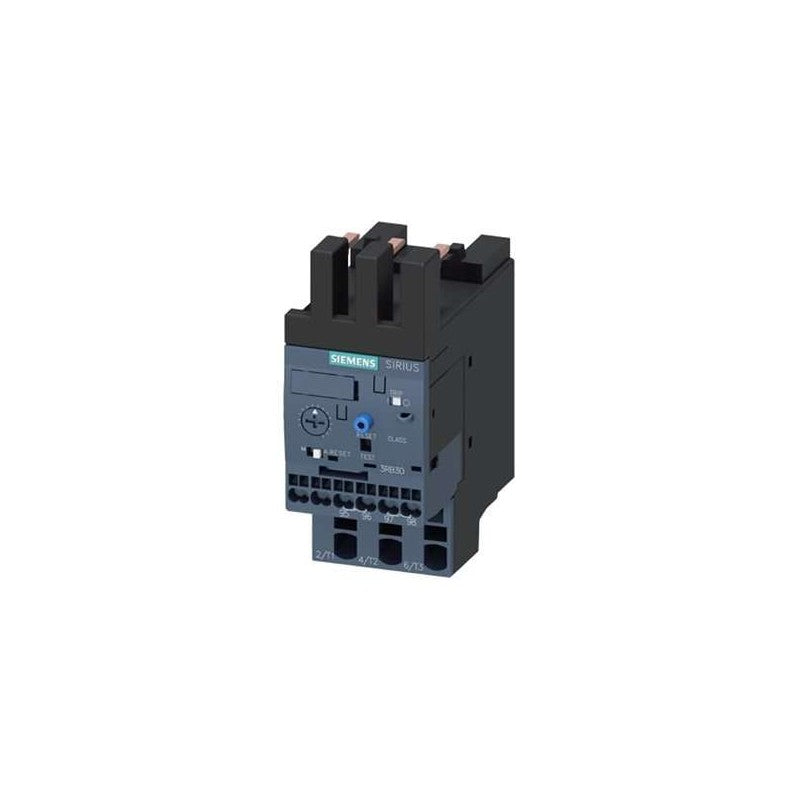

Siemens 3RB30262VE0 Overload S.S. CL20 S0 10-40A Spring

Product Description

The SIEMENS 3RB30262VE0 is an overload relay for motor protection, size S0, Class 20. It is designed for contactor mounting with spring-type terminals for both the main and auxiliary circuits, and features manual-automatic reset. It provides overload, phase failure, and unbalance protection, with an internal power supply.

• Overload protection, phase failure protection and unbalance protection
• Internal power supply
• Manual and automatic reset

Product Highlights

Solid-state overload relay with spring-type terminals, suitable for motor protection and easy integration.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RB30262VE0
• Country of Origin: CZ

Technical Specifications

• UNSPSC Code: 39120000
• Brand: Siemens
• Manufacturer Part Number: 3RB30262VE0
• Unit of Measure: EA
• UPC Code: 662643903072
• Amperage Rating: 10 to 40 A
• Contact Form: 1NO-1NC 1 Form A/1 Form B
• Contact Rating: 4 A at 24/110/120/125 V AC, 3 A at 230 V AC, 2 A at 24 V DC, 0.55 A at 60 V DC, 0.3 A at 110 V DC, 0.3 A at 25 V DC, 0.11 A at 220 V DC
• Enclosure Type: IP20
• Frequency Rating: 50 to 60 Hz
• Number of Poles: 3
• Series: 3RB3
• Temperature Rating (Degrees F): -25 to 60 deg C
• Terminal Type: Spring Loaded
• Type: Generation 3 Solid State
