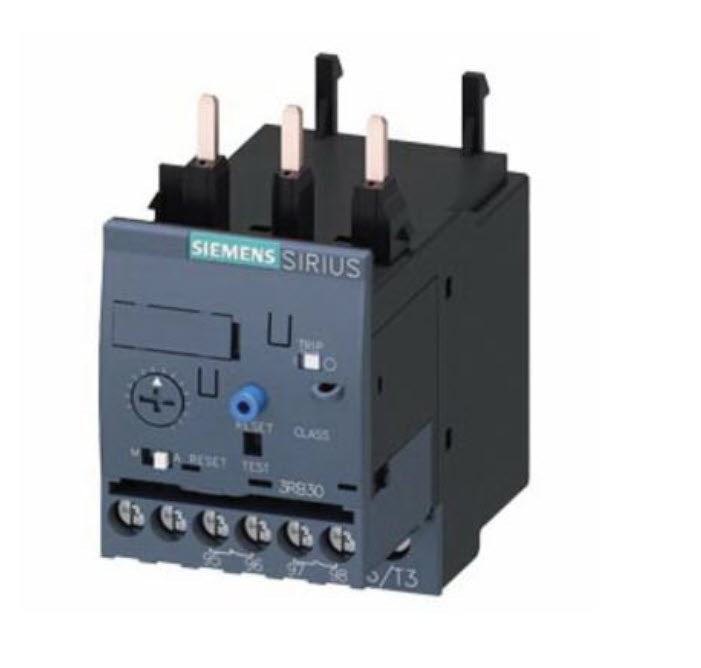

Siemens 3RB30262VB0 SIRIUS Solid State Electronic Overload Relay 10 to 40 A 1NC-1NO Contact 690 VAC

Product Description

The Siemens 3RB30262VB0 is a solid-state electronic overload relay. It is designed to provide overload protection and is suitable for use in various industrial applications. With a current range of ten to forty amperes and a coil voltage of six hundred ninety VAC, this relay is essential for reliable motor protection.

• Features overload protection and phase failure protection
• Offers a manual and automatic reset function
• Includes a test function for self-monitoring

Product Highlights

This relay is designed for use in challenging environments and can handle overload conditions effectively.

Product Information

Standard Information

• Brand: Siemens
• Part Number: Q4300

Technical Specifications

• Type: Solid State
• Amperage Rating: 10 to 40 A
• Power Rating: 11 to 37 kW
• Frequency Rating: 50 to 60 Hz
• Coil Voltage: 690 VAC
• Contact Form: 1NC-1NO
• Contact Rating: 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC
• Number of Poles: 3
• Mounting Type: Contractor
• Terminal Type: Screw
• Enclosure Type: IP20
• Temperature Rating: -25 to 60 deg C
• Dimensions: 87 mm H x 45 mm W x 84 mm D
