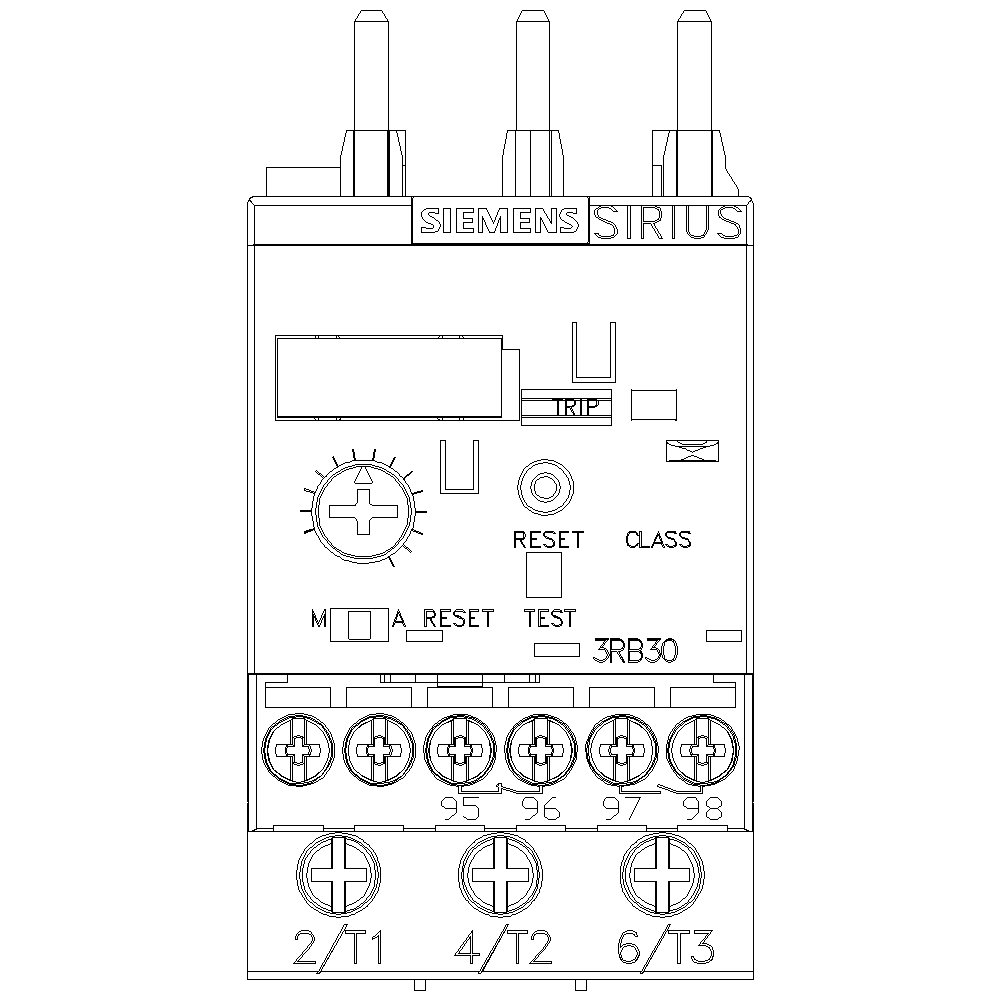

Siemens 3RB3026-1VB0 10-40A 3-Pole Overload Relay for Motor Protection

Product Description

The Siemens 3RB3026-1VB0 electronic solid-state overload relay is designed to protect your motors from excessive temperature rises due to overload, phase unbalance, or phase failure. This sturdy relay offers various overload protection options, encompassing a broad current range and numerous trip characteristics.

• Overload protection range from 10 to 40 amps
• Compact Size 0 for efficient installation
• Manual and automatic reset options

Product Highlights

This Siemens 3-Pole overload relay is energy-efficient and ideal for industrial applications like motor starters, transformers, and control circuits.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RB3026-1VB0
• Sub Brand: Sirius

Technical Specifications

• Overload Protection Range: 10-40A
• Voltage: 0-690 VAC
• Number of Poles: 3
• Contact Configuration: 1 NO, 1 NC
• Width: 3.860 inches
• Height: 2.25 inches
• Length: 4.45 inches
• Weight: 0.600 lb
• Temperature Rating: 25 - 60 degrees C
• Connection Type: Screw Connection
• Operating Temperature: 60 to 25 degrees C
• Environmental Conditions: 80 to 40 C
• Terminal Type: Screw
• Contact Rating: B600 / R300
• Applications: Motor starters, electrical components protection, power distribution systems
• Country of Origin: Czech Republic
