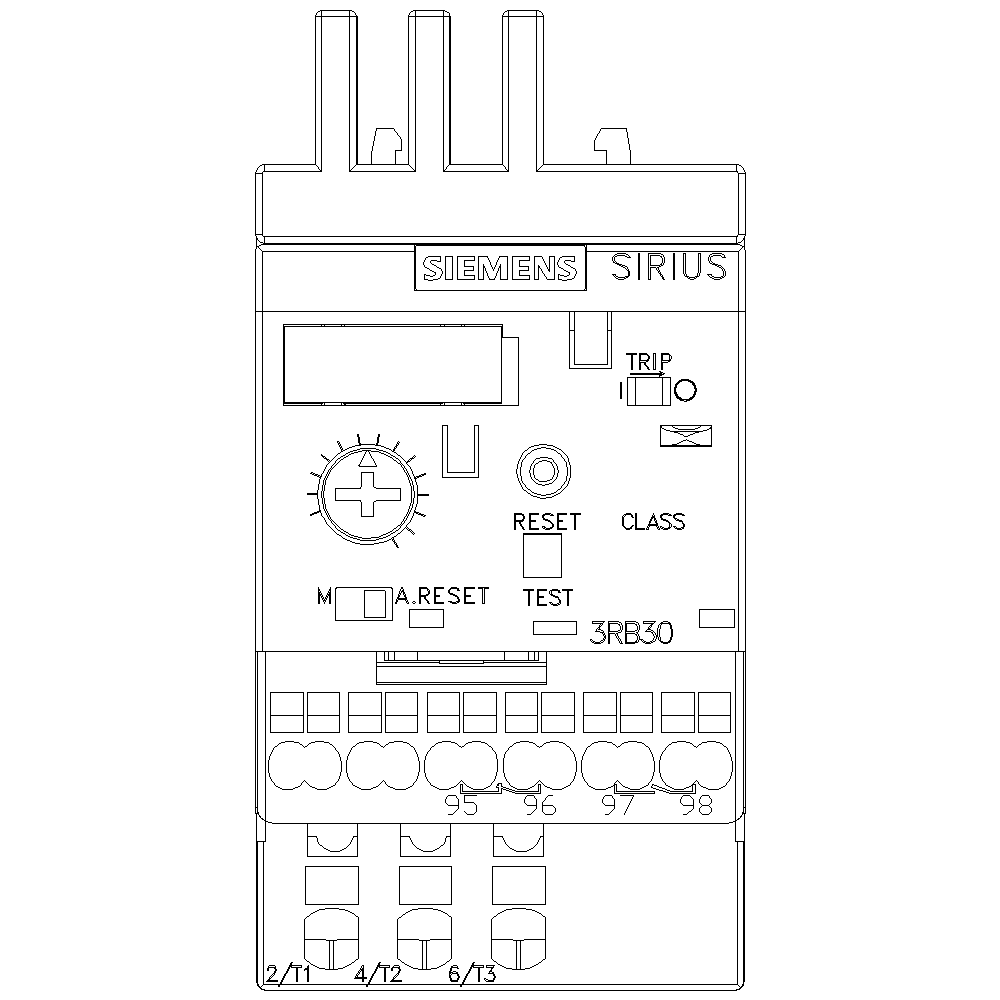

Siemens 3RB30162TE0 Overload Relay Solid-state 4-16A (Size S00, Class 20)

Product Description

Siemens 3RB30162TE0 is a solid-state overload relay for motor protection with an adjustable current range of 4-16 A. The device is a size S00, release class 20, and provides three-pole protection with one normally open and one normally closed auxiliary contact. It features spring-loaded terminals for main and auxiliary circuits and offers manual and automatic reset options for contactor mounting.

• Adjustable current range 4-16 A; size S00, release Class 20; 3-pole design for motor protection
• One normally open and one normally closed auxiliary contact; contact rating B600 / R300
• Spring-loaded terminals for main and auxiliary circuits; manual and automatic reset; designed for contactor mounting

Product Highlights

Solid-state overload relay for motor protection, adjustable 4-16 A, size S00, 3-pole with 1 NO / 1 NC and spring-loaded terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RB30162TE0
• Country of Origin: Czech Republic

Technical Specifications

• Manufacturer Part Number: 3RB30162TE0
• Brand: Siemens
• Product Type: Solid-state overload relay (3RB2 series)
• Sub Brand: Sirius
• Class: Class 20
• Size: S00
• Current Range: 4-16 A
• Number of Poles: 3 pole
• Auxiliary Contacts: 1 normally open, 1 normally closed
• Contact Configuration: 1 NO, 1 NC
• Contact Rating: B600 / R300
• Terminal Type: Spring-loaded terminals
• Connection Type: Spring clamp connection
• Reset Function: Manual and automatic reset
• Mounting Type: Contactor mounting
• Width: 3.47 in
• Height: 3.98 in
• Length: 2.33 in
• Weight: 0.378 lb
• Operating Temperature: -25 to 60 C
• Country of Origin: Czech Republic
• Applications: Motor protection
• UPC: 66264390283
• GTIN: 00662643902839
• Datasheet: https://media.distributordatasolutions.com/siemenscomplete/2021q3/documents/021ace55e2d18dd12fab626f4a359ad307ec89af.pdf
• Series: 3RB2
