Siemens 3RB30162NB0 Overload S.S. CL20 0.32-1.25 A (Size S00) 3RB3016-2NB0

Product Description

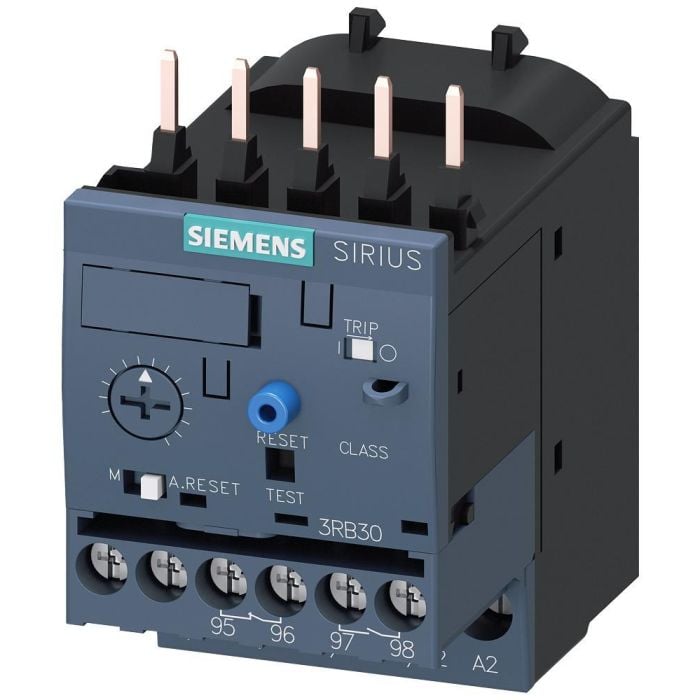

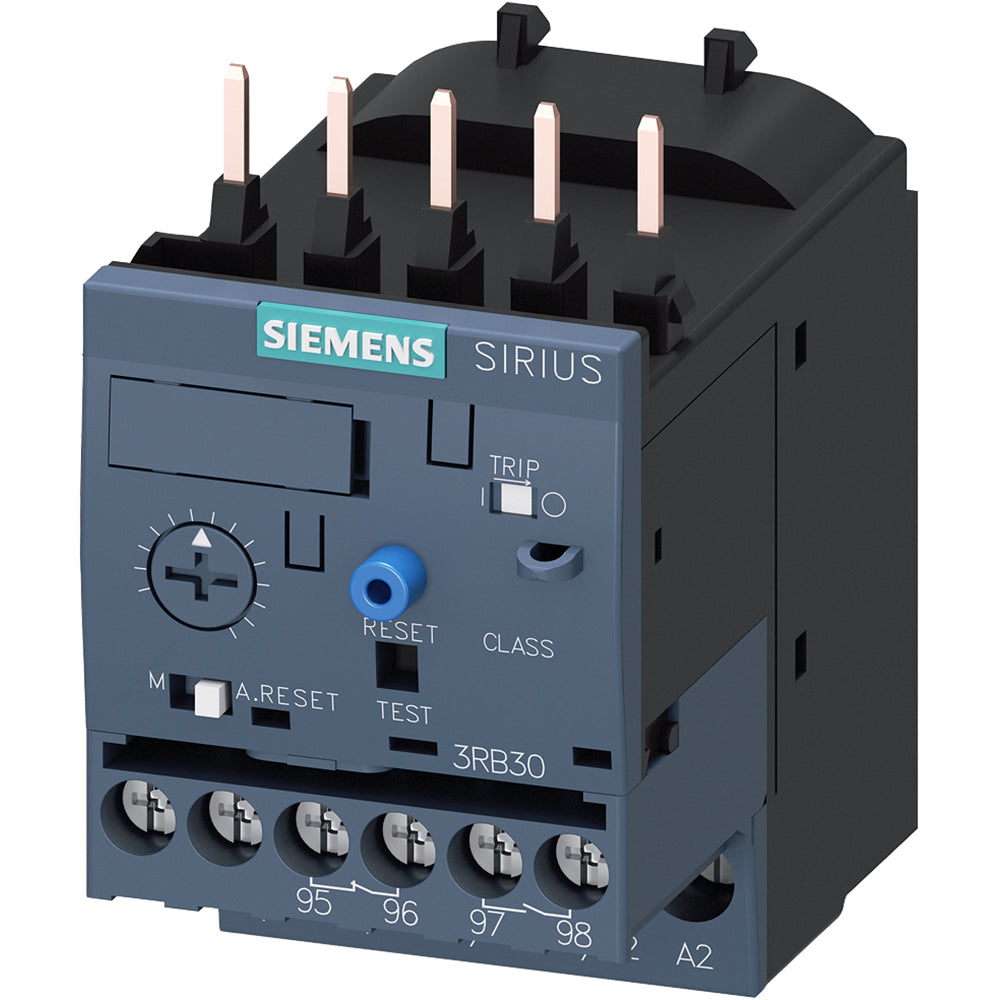

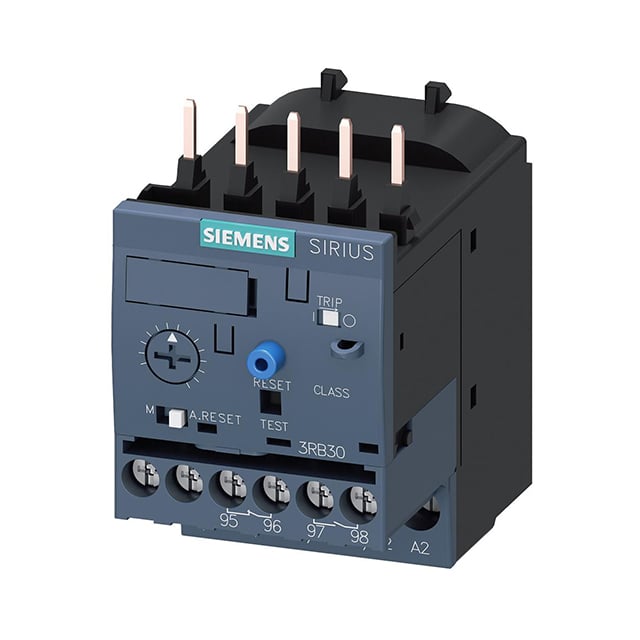

Siemens 3RB30162NB0 is a SIRIUS electronic solid-state overload relay for motor protection with an adjustable current range of 0.32 to 1.25 A. The three-pole device is designed for contactor mounting with screw terminals and offers manual or automatic reset. It provides inverse-time overload, phase failure and unbalance protection, an IP20 enclosure, and an operating temperature range of -25 to 60 C.

• Adjustable current range 0.32 to 1.25 A; size S00, trip class 20/20E
• Three-pole solid-state unit with 1 NO / 1 NC auxiliary contact; screw terminals and contactor mounting
• IP20 enclosure, operating temperature -25 to 60 C, dimensions 79 x 45 x 73 mm

Product Highlights

Electronic SIRIUS overload relay for motor protection, adjustable 0.32–1.25 A, 3-pole, manual/automatic reset

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RB30162NB0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3RB30162NB0
• Manufacturer Alternative Number: 3RB3016-2NB0
• Series: SIRIUS / 3RB3
• Product Type: Electronic overload relay (solid-state)
• Adjustable Current Range: 0.32 to 1.25 A
• Size: S00
• Trip Class: 20 / 20E
• Power Rating (kW): 0.12 to 0.37 (400 VAC, 50 Hz); 0.12 to 0.55 (500 VAC, 50 Hz); 0.18 to 0.75 (690 VAC, 50 Hz)
• Frequency: 50 to 60 Hz
• Rated Voltage: 690 VAC
• Contact Form: 1 NO / 1 NC (1 Form A / 1 Form B)
• Auxiliary Contact Ratings (AC): 4 A at 24/110/120/125 VAC; 3 A at 230 VAC
• Auxiliary Contact Ratings (DC): 2 A at 24 VDC; 0.55 A at 60 VDC; 0.3 A at 110/125 VDC; 0.11 A at 220 VDC
• Number of Poles: 3
• Mounting: Contactor mounting (surface mount compatible)
• Terminals: Screw terminals
• Reset Type: Manual or automatic reset (solid-state)
• Protection Functions: Overload protection, phase failure protection, unbalance protection
• Enclosure Protection: IP20
• Operating Temperature: -25 to 60 C
• Dimensions (mm): 79 H x 45 W x 73 D
• Standards / Approvals: RoHS, CCC, CSA, UL, EAC, C-Tick, ATEX, CE, ABS, Bureau Veritas, LRS, PRS, RINA, RMRS, DNV-GL
• Country of Origin: CZ
• GTIN / UPC: 4011209748675 / 662643905014
• Product Code / SKU: 3RB3016-2NB0 / 2234937
