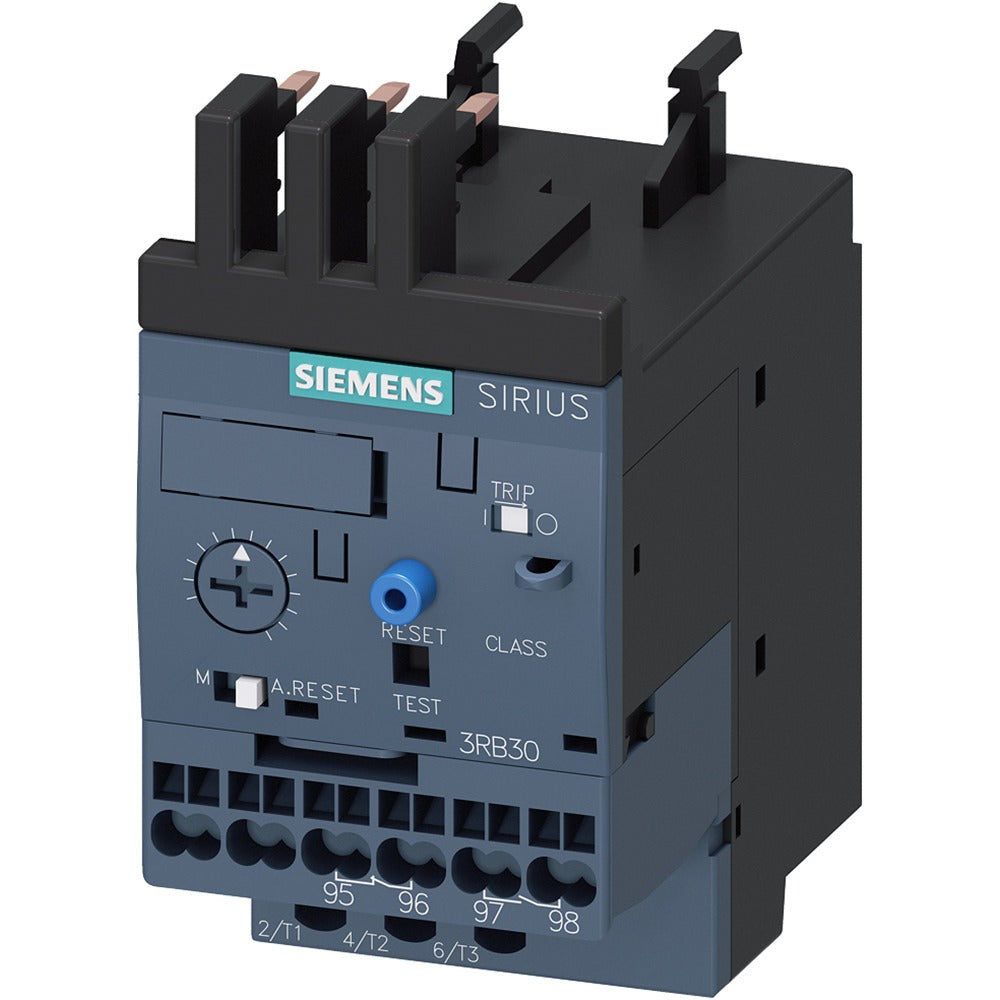

SIEMENS Siemens 3RB30161TE0 Overload Relay 4-16A (Size S00)
SIEMENS Siemens 3RB30161TE0 Overload Relay 4-16A (Size S00)

Siemens 3RB30161TE0 Overload Relay 4-16A (Size S00)

SIEMENS
Brand: SIEMENS
SKU: 3RB30161TE0
Availability: In Stock

Ships same day if ordered by 12 pm
$173.39
$173.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Siemens 3RB30161TE0 is an overload relay for motor protection with an adjustable current range of 4 to 16 A, size S00 and class 10. The device is designed for contactor mounting and features spring-loaded terminals on both the main and auxiliary circuits. It supports manual and automatic reset and provides overload protection for motor circuits.

  • Adjustable overload range: 4 to 16 A; size S00, class 10
  • Spring-loaded terminals for main and auxiliary circuits; contactor mounting
  • Manual and automatic reset; provides overload protection for motors

Product Highlights

Overload relay 4–16 A, size S00, class 10, spring terminals, manual/auto reset

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 3RB30161TE0
Technical Specifications
Brand
Siemens
Manufacturer Part Number
3RB30161TE0
Type
Electronic overload relay (solid-state)
Adjustable Current Range
4 to 16 A
Motor Power Range
3 to 11 kW
Frequency
50 to 60 Hz
Rated Voltage
690 V AC
Contact Configuration
1 NO - 1 NC (1 Form A / 1 Form B)
Auxiliary Contact Ratings (AC-15)
4 A at 24/110/120/125 VAC; 3 A at 230 VAC
Auxiliary Contact Ratings (DC-13)
2 A at 24 VDC; 0.55 A at 60 VDC; 0.3 A at 110/125 VDC; 0.11 A at 220 VDC
Poles
3
Mounting Type
Contactor mounting
Terminals
Spring-loaded terminals (main and auxiliary)
Enclosure Rating
IP20
Ambient Temperature Range
-25 to 60 °C
Dimensions (HxWxD)
72 mm x 45 mm x 90 mm
UNSPSC Code
39120000
UPC
662643905007
Certifications
RoHS, CCC, CSA, UL Listed, EAC, C-Tick, ATEX, CE, ABS, Bureau Veritas, LRS, PRS, RINA, RMRS, DNV-GL
