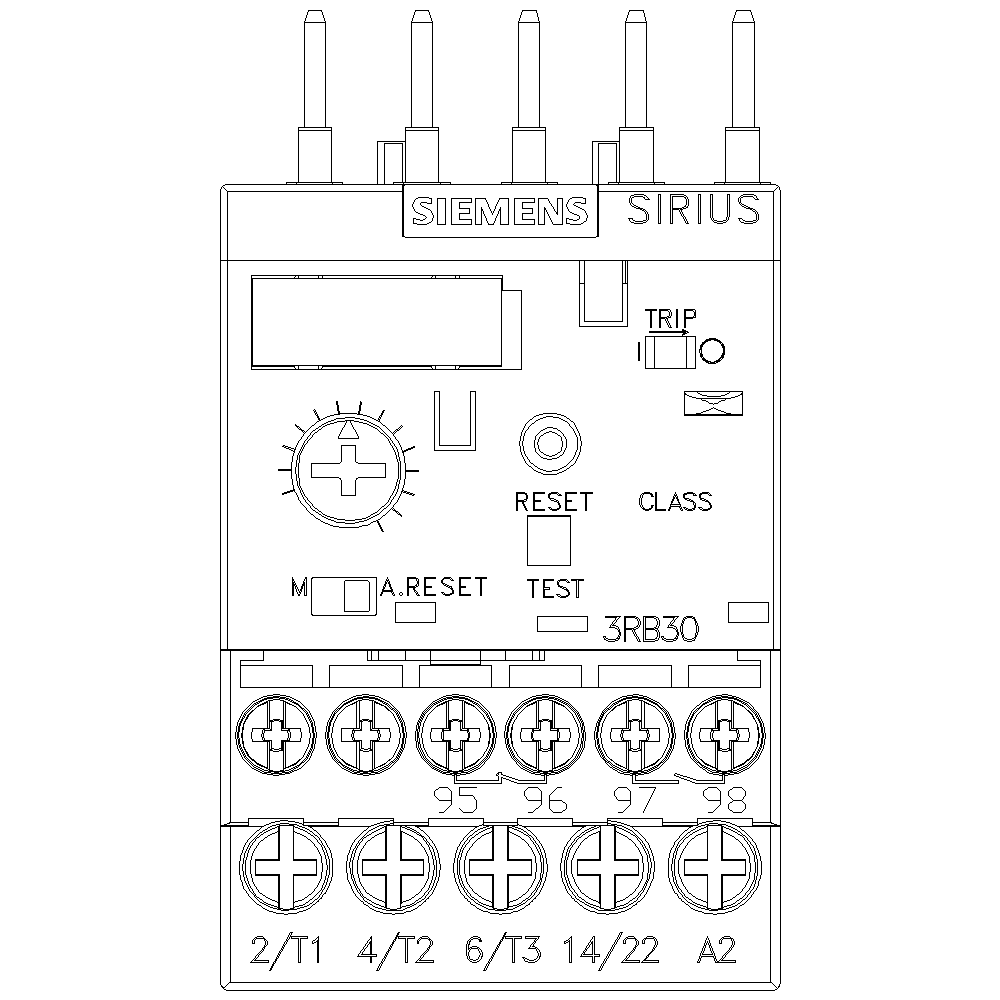

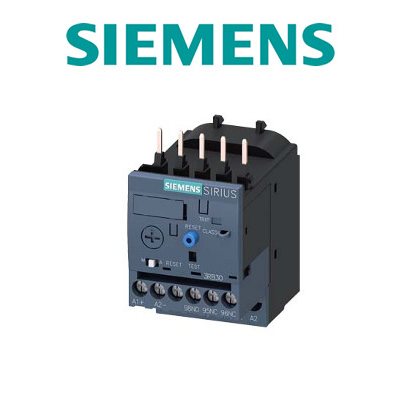

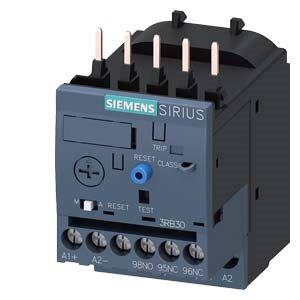

Siemens 3RB3016-1RB0 690 Vac 0.1 to 0.4 Amp 3-Pole 1No 1Nc Electronic Solid State Overload Relay

Product Description

The Siemens 3RB30161RB0 is a solid state overload relay designed for motor protection. It operates within a voltage range of zero to six hundred ninety volts AC and an amperage range of zero point one to zero point four amps. This relay is equipped with one normally open and one normally closed contact, making it suitable for various applications.

• Overload protection for motors
• Compact size S00 with Class 10E rating
• Energy-efficient design to reduce heat generation

Product Highlights

This electronic overload relay provides inverse-time delayed protection for motors against excessive temperature rises caused by overloads or phase failures. With various current settings and trip characteristics, it effectively covers a complete range of motors.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RB3016-1RB0

Technical Specifications

• Type: Automatic Reset, Solid State
• Class: Class 10
• Voltage: 0-690 Vac
• Amperage: 0.1-0.4 Amp
• Width: 2.17 inches
• Height: 3.75 inches
• Length: 3.35 inches
• Weight: 0.45 lb
• Terminal Type: Screw
• Connection Type: Screw Connection
• Country of Origin: Czech Republic
• Contact Configuration: 1 NO, 1 NC
