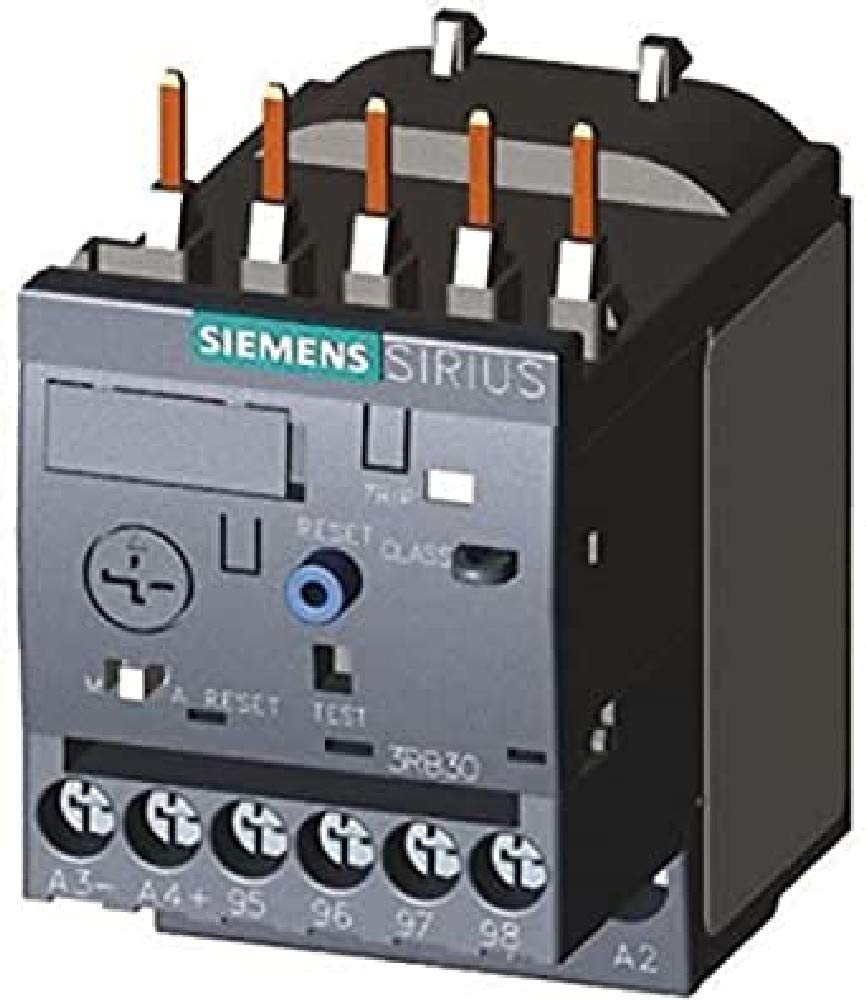

Siemens 3RB3016-1PB0 Overload Relay 1-4 Amp 3-Pole 1NO 1NC 690 VAC

Product Description

The Siemens 3RB3016-1PB0 is a high-efficiency electronic solid state overload relay designed for optimal motor protection. This device safeguards motors from excessive temperature rises due to overloads, phase unbalance, or phase failure.

• Automatic operation mode with a current rating of 4 amps.
• Versatile voltage compatibility from 0 to 690 VAC.
• Manual-Automatic-Reset offering flexibility in motor control.

Product Highlights

Featuring an adjustable tripping range of 1-4 amps, this relay allows precise motor protection. The compact size and screw or spring-loaded terminal options ensure easy, maintenance-free, and vibration-proof connections.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RB3016-1PB0

Technical Specifications

• Dimension: 1.97 x 3.94 x 3.54 inches
• Weight: 10.58 ounces
• Contact Configuration: 1 NO, 1 NC
• Class: 10
• Connection Type: Screw Connection
• Coil Voltage: 24 Volts
• Current Rating: 1-4 Amps
